This page last updated May 07 2010, added links Mar 19 2017, updated Nov 14 2018.
For a list of available Morrow docs look below.
Again, here is how to order S-100 stuff and email @ me.
For a list of all S-100 docs click there.
Bill Godbout, of Compupro and Viasyn computers, early producers of S-100 boards and who worked with George Morrow, passed away Nov 8th 2018, in the California wildfires. Here's some reflections I had at the time.

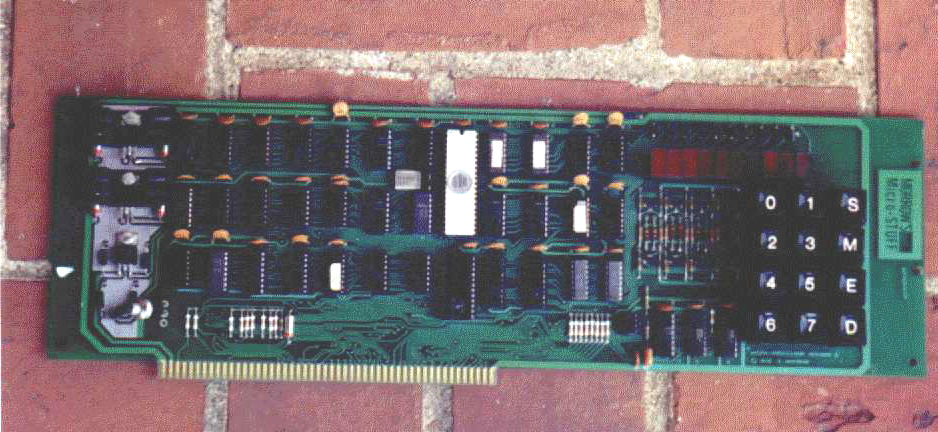

George Morrow produced a number of S-100 products throughout the S-100 era, first under the "Morrow's Micro-Stuff" brand name, then "Thinker Toys" or "ThinkerToys", and later as Morrow Designs. One early product was this very pretty OCTAL-based front panel, "The Keyed-up 8080". (Board loaned courtesy of James Prior.) His company Morrow Designs filed for bankruptcy in 1986; George Morrow passed away in early May 2003, age 69. An informative obituary was in the New York Times of May 8 2003, a Web search may find a copy as it was widely printed and distributed.
Regarding the NYT obituary: it is informative but incomplete regarding the role of the S-100 bus and George Morrow's S-100 products. It says Morrow produced S-100 "expansion products" cards for "personal computers...sold as kits"; followed by "a portable computer competing with the Osborne 1" and later a "industry standard" (i.e. IBM-PC compatible) portable called the Pivot. Morrow's efforts to standardize the S-100 bus were mentioned but described the S-100 as an "expansion card" bus.
In fact the S-100 computers of the mid-1970's were offered assembled or unassembled, the latter to keep costs down and delivery rapid - critical concerns for the small companies in the late 1970's who produced those earliest computers. The S-100 architecture was completely open; boards were not just expansions but DEFINED the entire computer. Morrow, like other early S-100 manufacturers, started with board products; then produced S-100 systems; and in the 1980's assembled single-board systems such as the Pivot. But in the late 1970's S-100 systems were a large, arguably dominant, segment of the personal and business microcomputing market; they were a strong presence through the mid-1980's. Many features of the 1981 IBM PC can be attributed to the need to compete with S-100 systems and to provide comparable support - including third-party card expansion, open hardware and full software documentation. Consequently George Morrow's products and quality of support; and his work with others to standardize and advance the S-100 bus into the IEEE-696 standard, were critical for the future of S-100 systems. That set the course followed by the later "PC compatible" industry.
Unfortunately by the time the IEEE ratified the standard in 1983, much of the small computing world was moving to single-board computers and to the IBM PC architecture which was introduced in 1981. Morrow's company was no exception and it produced a series of single-board computers until the company closed its doors in 1986.
In April 2006 I stumbled over this PC-history Web site which has a chapter about George Morrow, a first-person account by Stan Veit written around year 2000. Since Veit's death the site has been maintained and preserved.
My only subsequent information about George Morrow's archives are the following. Sometime in 2002 or so, I learned that one of his sons has or had his collection of boards and documents. Sometime in early September of 2003, some S-100 boards were sold at a popular Web auction as "a piece of Personal Computing history from George Morrow's (1934-2003) personal collection." Checking that popular site again in 2006, I saw additional Morrow boards sold alledgedly from Morrow's collection. Checking again that site in 2007, I saw the following note with an auction item which offers a summary history and confirms the status of at least part of Morrow's estate and archives.
Here is another great item from George Morrow's personal collection!
If you are viewing this auction, you are aware of the role that George Morrow (Morrow’s MicroStuff, Thinker Toys, Morrow Designs) played in the personal computing industry and the significance of some of these items. Between him and Bill Godbout of CompuPro, a friend, collaborator, customer, and sometimes business partner, they turned out a number of innovative products during the early years. Although their businesses were initially based on peripherals for the existing systems of the time like the IMSAI (IMS Associates) 8080 and the MITS (Micro Instrumentation Telemetry Systems) Altair 8800 machine, they did help develop the industry standards for the S-100 bus (IEEE-696), and eventually had enough products on the platform to build turn key systems. My father stayed in business as the world embraced the single board computers running CP/M (Morrow MicroDecision), and lasted through the early days of the IBM compatible machines (Morrow Pivot).
In Nov 2006 I corresponded with Marc Kupper, a former Morrow staffer. With his permission, here's what he said about his Morrow experiences. My slight edits to his words are in []'. - Herb
> I worked at Morrow Designs in the late 1970s and early 1980s in > R&D with my time split between debugging hardware (CPU boards, > disk controllers, RAM boards, backplanes, the Decision-1 which > was for CP/M and then Micronix and finally the MicroDecision), > plus doing all of the device drivers and system testing software > for those devices. We had a couple other guys that concentrated > on Micronix plus two writers for the documentation. > Morrow's Microstuff started in Berkeley but by the time I started > they had moved to Central Ave. in Richmond. I forget if it was > called Thinker Toys or had just been renamed to Morrow Designs. > There was a lot of Thinker Toys related stuff around. In those > days it was more of a family business with George's wife (Jean) > running the admin/finance end of things, their boys getting > underfoot, etc. I suspect we had about around 25 people with most > of those in the factory. > > I believe we moved to San Leandro (McCormick street and about > two miles from Godbout Electronics / CompuPro) in either late > 1981 or early 1982 and it suddenly became a huge company (it > seemed like over 100 people) with the factory changing from > essentially a horse-n-buggy affair to a quite modern looking > establishment with rows of part installation stations connected > by conveyer belt roller things. I left in 1982. > One name... to bring up is Howard Fullmer > (of Parasitic Engineering) who had worked with George earlier. > [He] came to work for Morrow Designs shortly after the move to San > Leandro. I believe he was the director of R&D. > Memories - George and I working through the night trying to get > the DJ-DMA floppy disk controller board ready for Comdex (probably > 1980). The board had a debug monitor that you could access via > RS-232 and at one point it seemed the board had died completely > with no output on the debug monitor. We spent an hour trying to > figure out what had failed before someone noticed we had forgotten > to plug the RS-232 cable back in. Crud - plug it in, verify that > our last changes (now done an hour earlier) were all that were > needed, and head home to pack for Comdex. > One of George's specialties, and something he could talk endlessly on, was > phase-lock-loop circuits. > Some people complained about the octal keypad on the Keyed-up-8080, and the > accompanying accordion-fold "cheat sheet" that had the 8080 > instruction set laid out in octal. It turns out the 8080 > instruction set breaks down very nicely in octal. George > knew the entire instruction set inside/out meaning he'd > write down the code and key it right in or for small things > just key it in. > The DJ-DMA (Disk Jockey DMA > floppy disk controller) plus HD-DMA (MFM hard disk controller) > have never been matched except possibly in controllers used by > high end servers. What made these controllers unique is that > they were like simple computers. You wrote "programs" for them > in your local RAM and the controller would read and "execute" > those programs for you via DMA and also read/write your sector > data via DMA. Prior to these controllers you always needed sector > interleaving to give the operating system (CP/M or Micronix) time > to figure out what the next sector was. The DMA controllers were > able to write or write a track in a single revolution. The DJ- > DMA could also "uninterleave" a track on the fly in that if you > used a diskette from another system that needed interleaving the > DJ-DMA could still read or write a track in one revolution while > it read/wrote the sector data from the appropriate place in the > sector buffer. The HD-DMA also supported variable track sizes in > that you can fit more sectors on the outer tracks.... > Proudest memories - I still believe the DJ-DMA, HD-DMA, and MPZ80 > were amazing. The MPZ80's memory mapping and "supervisor mode" > did not get matched in the Intel world until the 80386 came out. > The MPZ80 is pretty well documented and I suspect someone running > a Z80 emulator should easily be able to add the MPZ80's memory > mapping to [that] emulator.
Marc and I also discussed Micronix, the Morrow Z80 port of Unix. More information about the Micronix operating system is on this Web page.
Marc also mentioned the SSTACK line, a control signal available from the 8080 and Z80 whenever a stack pointer (SP) operation was performed. Here's what Marc said:
I'm surprised you did not mention the use of SSTACK as a 17th address line to allow for Altair/Imsai systems with 128K bytes.... It came out of a conversation with someone about why there was a STACK light on a front panel and learned then about its use as A16. It was common among minicomputers of the era to have the stack off in its own address space. I never worked on a 8080 system that was configured this way and suspect this is one of those "interesting ideas that got kicked around but never used in a production system" things.
I also seem to recall Intel also making the 128K claim but need to see if I can find that one. The 8080 data sheets imply it with separate bullets for the 16-bit program and 16-bit stack address spaces though once the 8228/8238 came into common use (not to mention the 8085 and Z80) you pretty much lost STACK as A16. - Marc Kuper
In 2006 Robert Parker of the Los Angeles (CA, USA) Morrow's User's Group sent the following note about the magazines I have in my list of Morrow documents:
Those Morrow Owner's Review's are an interesting piece of history, but they were *not* produced by, or were they in anyway affilliated with, Morrow. A lady named Emma Paquin, a memeber or LAMUG (Los Angeles Morrow Users' Group), produced those as a "one lady show", to help other's learn about the machines. Pretty neat actually. Brian Leyton and I founded that group in 1981, and in it's "heydey" we had over 250 members. Met once a month, no dues of memberships fees of any kind (we passed a hat at the meetings to raise postage money to mail our newletters and meeting announcements), and usually 45-60 attendees each meeting. Great fun.
[LAMUG] was kinda unique, I think, in that we had all types of members, from JPL scientists to octogenarian retirees happily hacking away at the little machines. I remember doing an informal survey of the group at one point and found that the "average" age of our members was 57 - pretty unusual for microcomputer user groups of that time, and quite an educational and rewarding experience for me, a youngish "30 something" at the time.
Just an "historical note", Robert Parker
Morrow DJ2D
The Morrow DJ2D remains as a popular S-100 floppy controller. It supports single and double density 8-inch drives, and with a serial UART the BIOS doesn't require patching for some arbitrary serial port. In 2017-18 Mark Thomas worked to restore a few of these cards, and he developed a working set of address PROMs and BIOS/BOOT code for boards addressed at E000H and F800H. Here's a Web page with his results.
The DJ2D came in multiple versions, and as noted was opperated in memory-space, at E000H from the factory, or modified for F800H to provide more "TPA" or CP/M program space. When asking for manuals, look for the revision number and see if PROMs or ROMs on the board list the memory address in use. - Herb
MPZ80

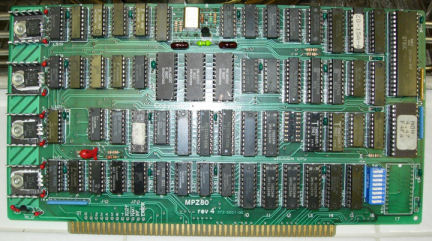

A very interesting Morrow S-100 product is the MPZ80 Z80 CPU card. It includes hardware for memory paging (24-bit addressing), memory management, and "traps" or interrupts when pages are inappropriately accessed. These features supported the Morrow "Micronix" operating system, which I'm told was a full port of Berkeley UNIX version 6. Here's the ROM monitor hex code version 4.47 for that board revision 4. Image and hex code courtesy of Rich Camarda; he says the ROM starts at 0800H.
Morrow ROMS
We have a few Morrow MPZ80 ROM hex dumps, courtesy of Rich Camarda. Check this page for them. One is for Micronix, one for CP/M.
For a list of available Morrow docs look below.
Again, here is how to order S-100 stuff and email @ me.
For a list of all S-100 docs click there.
Morrow documentation
Morrow Micronix version 1.6 manual: well over 300 pages. Similar to old Unix manuals
with chapters on startup and installation, user guide, commands, etc. etc.
Some references to hardware but no schematics or specifics. Ask for details and
copies of sections.
Keyed Up 8080 (single board 8080), schematics, source code. 60 pgs
Morrow 8080 (front panel) User's Manual, 64 pgs
MPZ80 CPU Tech Ref Manual, rev 1 Apr 82, 84 pgs
Morrow DJ-1 floppy manual, 69 pgs
Disk Jockey 2/DIO (floppy) Manual, w/BIOS listings, 114 pgs
Disk Jockey 2D (floppy) model B User's Manual, w/sources, 102 pgs
Disk Jockey 2D (floppy) model B rev 2 User's Manual, w/sources, 102 pgs
Disk Jockey 2D (floppy) rev 4 User's Manual, w/sources, 90 pgs
See this Web page about the DJ2D/B board
DJ DMA Floppy Disk Controller Tech Ref Manual, rev 1 1982, BIOS listings, 66 pgs
HDC-DMA Hard Disk Controller Ref Manual, 48 pgs
Disk Jockey HDCA (Hard Disk) Controller Ref Manual, w/BIOS list, 94 pgs
Morrow Discus M10, M26 (10MB or 26 MB hard drive) manual, 28 pgs
Morrow Discus M26 (26 MB hard drive) manual, 48 pgs
Switchboard User's manual, 30 pgs
Mult/IO I/O Controller Tech Ref Manual, w/source, 126 pgs
Wunderbus I/O Controller (not motherboard) Tech Ref Manual, w/ sources, 96 pgs
Wunderbus S-100 motherboard - hand drawn schematic and layout, 2 pages.
MMSP2 MultiPurpose Interface: cassette/ser/par, [proc tech] 50 pgs
includes COPE (Cassette OPeration Executive) source listing
"How to stop a microprocessor", discussion, 6 pages
Morrow SynchroFresh VIII 8K memory, 1977, schematics only, 3 pgs
MM256K DRAM Tech Ref Manual, 28 pgs
MM65K Memory Board Users Manual, 32 X M58725P RAM, 26 pgs
SuperRam Users Manual, 16K memory. 30 pgs
two 4 X 4 arrays of 2114 RAM; has 74154 chip (24/28 pin);
board says "SuperRam" in large white text
three DIP switches on top edge of board.
ThinkerToys SuperRam 16k-A User's Manual, 24 pgs
two 4 X 4 arrays of 4044 RAM;
board says "SuperRam 16" in small text
three DIP switches on top edge of board.
ThinkerToys SuperRam 16K - manual not available
one 4 X 8 array of 2114 RAM; 74154 chip;
board says "SuperRam 16K" (?) in small white text
"Thinker Toys" in larger white text.
three sets of DIP switches near top edge,
three more sets of DIP switches on board
ThinkerToys SuperRAM 32K, 32K board - manual not available
two 4 X 4 arrays of MM5257 (4044?) static RAM;
Board says "SUPERRAM 32" in large white letters,
Has ONE DIP switch of 8 switches, near top edge.
ThinkerToys Wunderbus - 21 slot motherboard
no manual but hand-drawn schematic and photo, 2 pages - ask
MDT 60 Video Display Terminal Users Manual, 54 pgs
MDT20 Terminal Ref Manual, 52 pgs
MDT70 Terminal Ref Manual, 62 pgs
Spite software present: Guide to Products and Services, Morrow
Nov 1985. Price and ad booklet, 36 pgs
Morrow Owner's Review - MicroDecision and Pivot support magazines
snapshots of George Morrow's company and early 1980's computing
see the "history" above for more info on these magazines
Vol 1 #1, April 84; 48 pgs (2) (notes on Morrow company, interview)
Vol 1 #2, June 84; 48 pgs (2) (PIVOT, facility tour, Morrow talk on tape)
Vol 1 #3, Aug 84; 48 pgs (2)
Vol 1 #4, Oct 84; 48 pgs (2)
Vol 1 #5, Dec 84; 60 pgs (George M. Compuserve interview)
Vol 2 #1, Dec 84; 60 pgs (2)
Vol 2 #2, Feb 85; 42 pgs (2)
Vol 2 #3, Apr 85; 42 pgs (2)
vol 2 #4, Aug 85; 60 pgs
vol 2 #5, Oct 85; 60 pgs (Pivot II and Zenith Z-171 deal)
vol 2 #6, Dec 85; 60 pgs (end of MicroDecision production)
Vol 3 #1, Feb 86; 50 pgs
Vol 3 #2, apr 86; 50 pgs (Morrow Corp. files Ch. 11 in March)
vol 3 #3, jun 86; 60 pgs
