Mac Keyswitches

Last updated Sept 30 2024. (C) Herb Johnson 2024.

I have a handful of unused new old-stock keyswitches for early Apple and Macintosh keyboards; they are not likely for sale, but you can ask. I'm trying to identify these keyswitches, let me know what I missed. I have for sale, Mac keyboards, and used keyswitches like these pulled from keyboards. This Web page shows some examples.

When Ordering keyswitches: Please attempt to: 1) identify the keyboard model for the desired switches, 2) identify the specific keyswitch by brand and model if I identify it here. and 3) include a Web link to my photo of the desired keyswitch. I'll see if I have these as pulled good keyswitches. Please note if you want a "caps lock" as those are scarce (only one per keyboard). If you don't tell me these things, I'll likely ask.

Why all this attention? There seems to be some collectable or specific interest in specific keyswitches by brand and feature. For some people, the feel and look of specific keyswitches is of value. Also some people want to repair their own keyboards and need exact replacements. So I've identified the few unused keyswitches I have as Apple repair old unused stock, on this Web page. I've also identified some used Apple ADB keyboards, identified the keyswitches in use, and I can offer those as used pulled keyswitches. Photos and more discussion are on my photo survey of Apple IIGS A9M0330 and 658-4081 keyboards from Japan.

keyboards: I offer Apple Mac ADB keyboards on this linked Web page. Another Web page has early Mac 128K 512K Plus keyboards.. I have some Apple II keyboards and parts on another Web page. And I have other keyboards described or linked-to on this keyboards Web page.

A Web site where keyswitches are identified and organized is deskthority.net. Look there and at other resources for details on keyboard history and design. My thanks to Daniel Beardsmore there, amd other folks who work in that Web site, for discussions with me and for identifying some keyswitches.

old stock unused Mac/Apple keyswitches

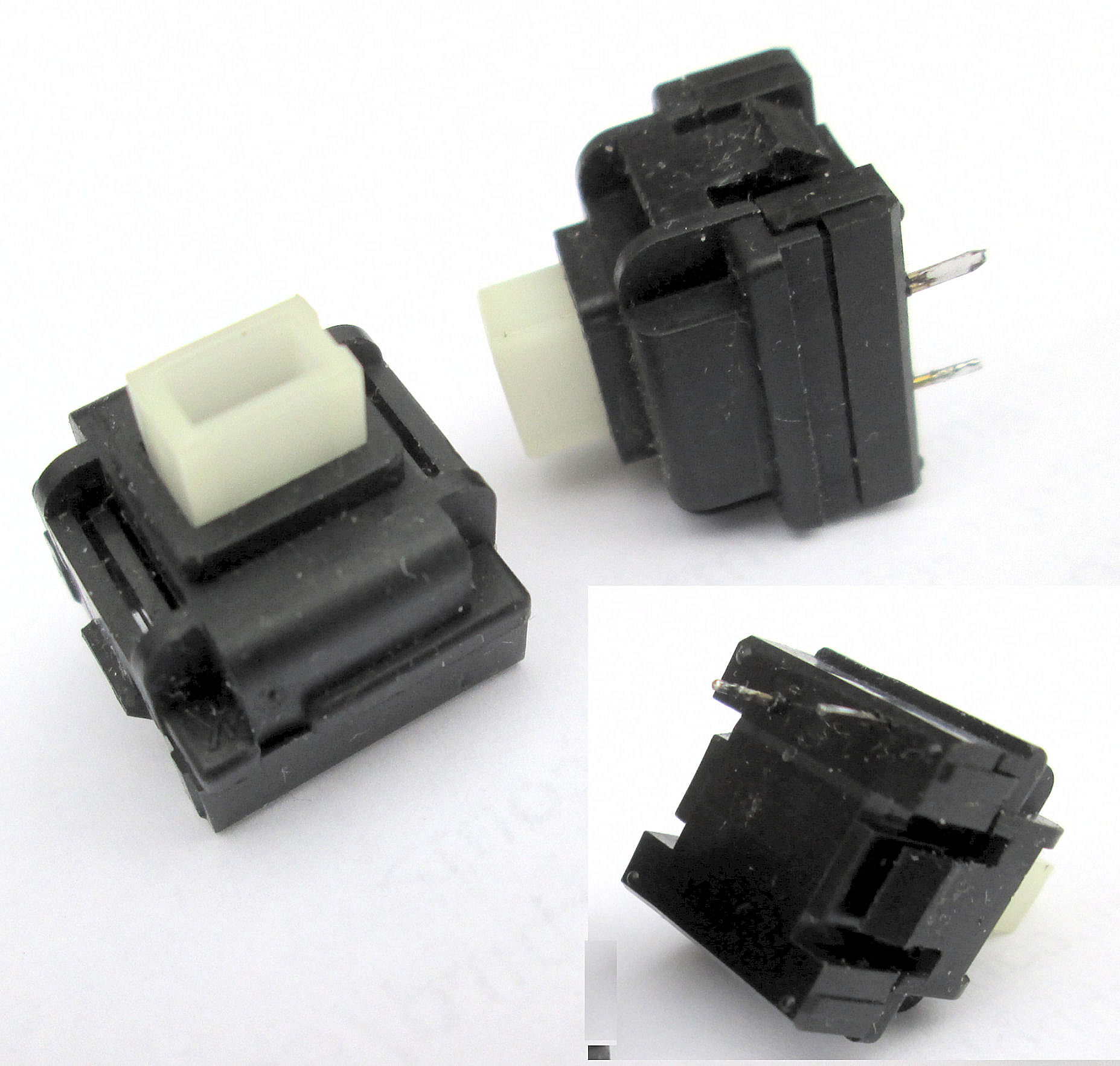

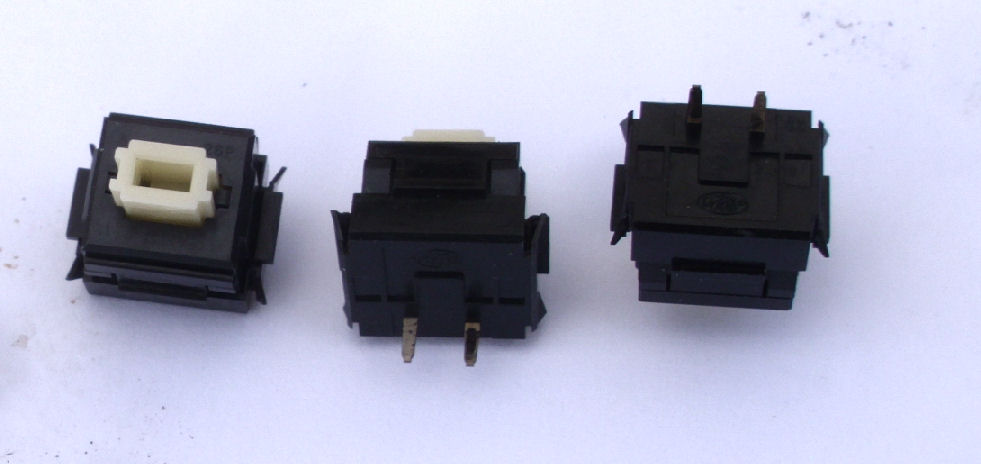

no info on bag
But these look like "A9M0330 keyboard Made in Taiwan. White tactile SMK Alps mount switches" as shown on a Web page of early ADB keyboards.

no info on bagpossibly "Alps SKCM Cream Damped" or "SKCMBB" and maybe used in the Extended Keyboard II.

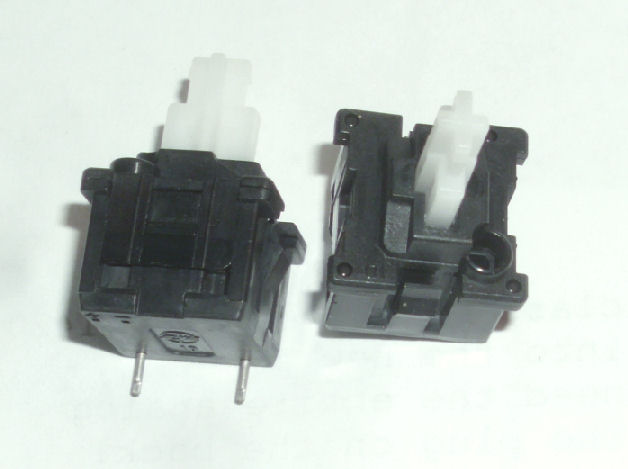

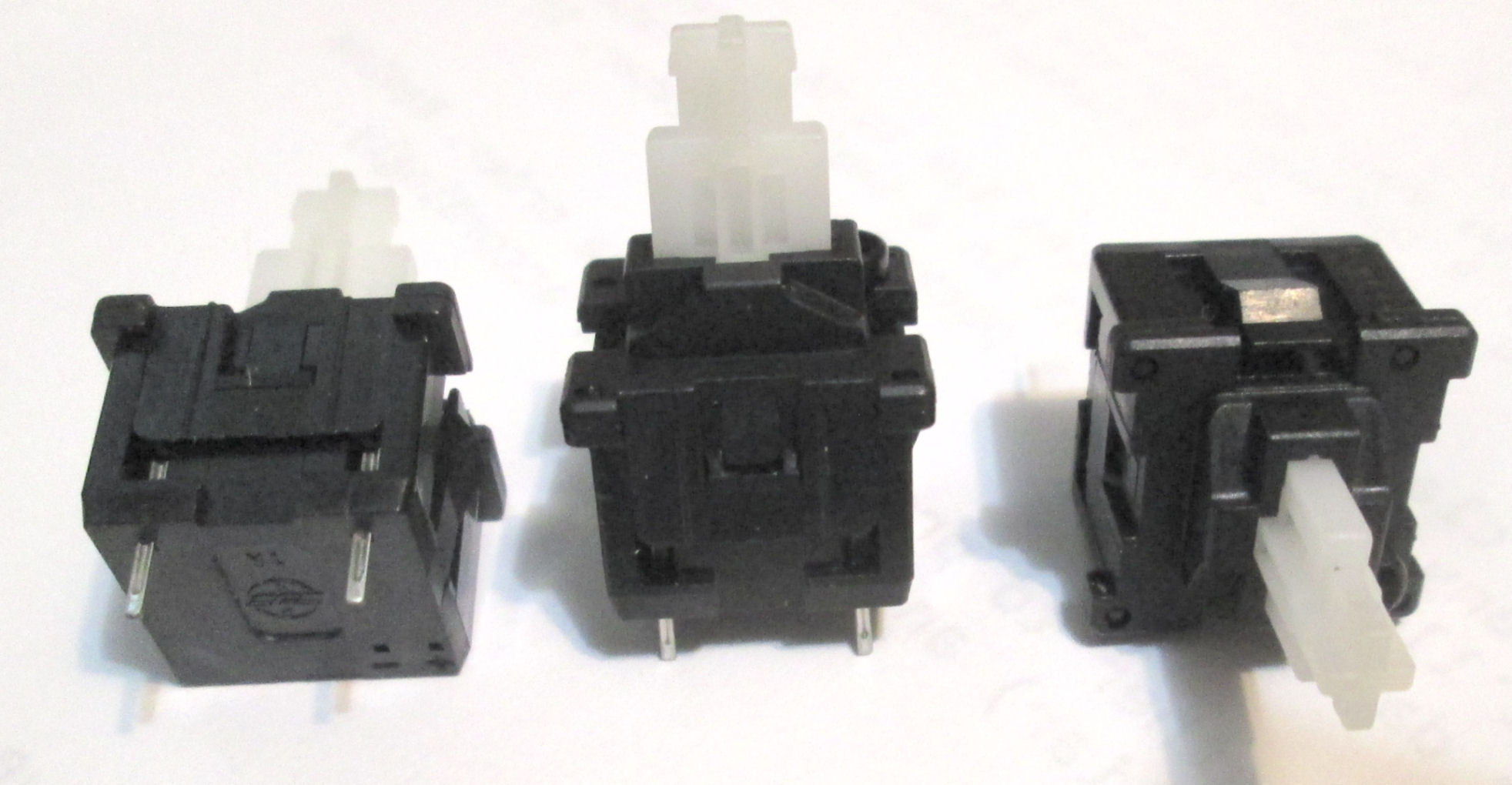

OUT bag hand-marked 705-0044
this is a locking keyswitch, two positions. Web research identifies for Apple IIe and M0110A (Plus extended keyboard), by Mitsumi."OUT

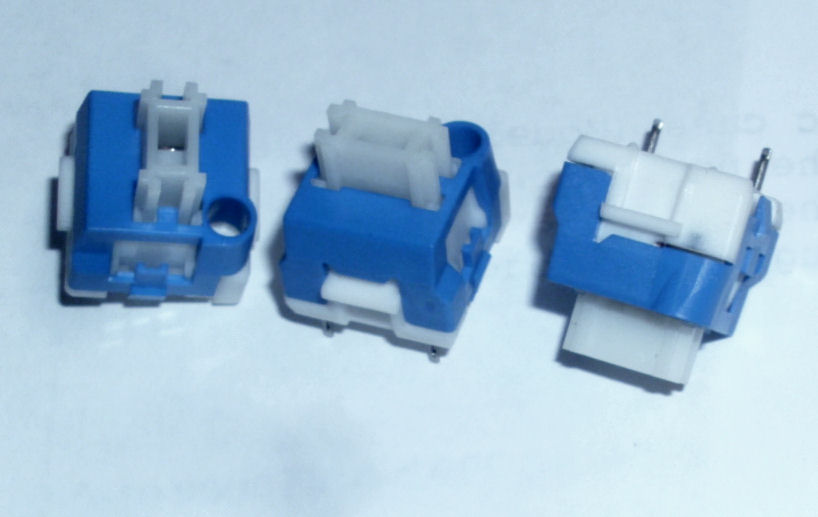

Apple Service labled 937-0051 "keyswitch, locking" has two positions. Possibly used in Apple Extended II keyboard.

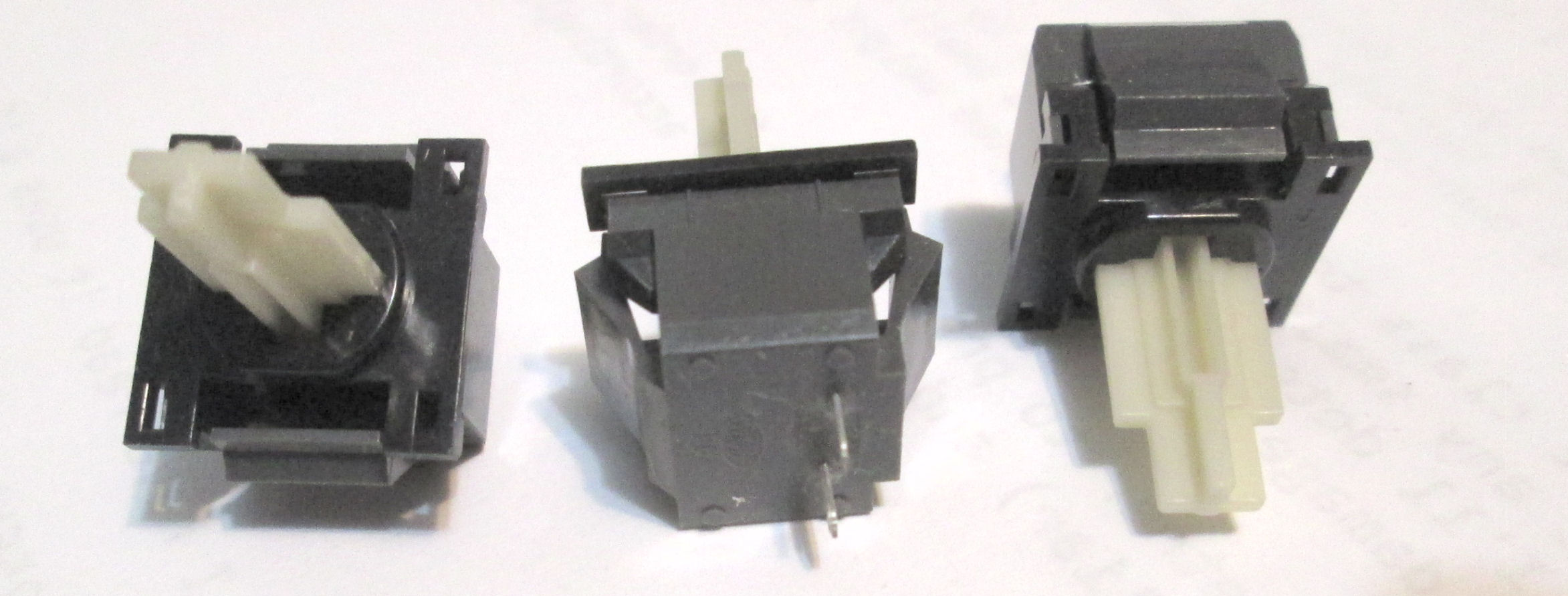

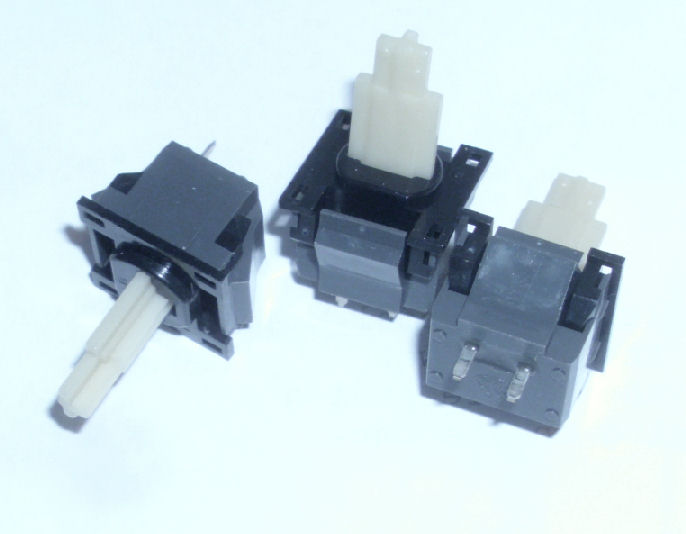

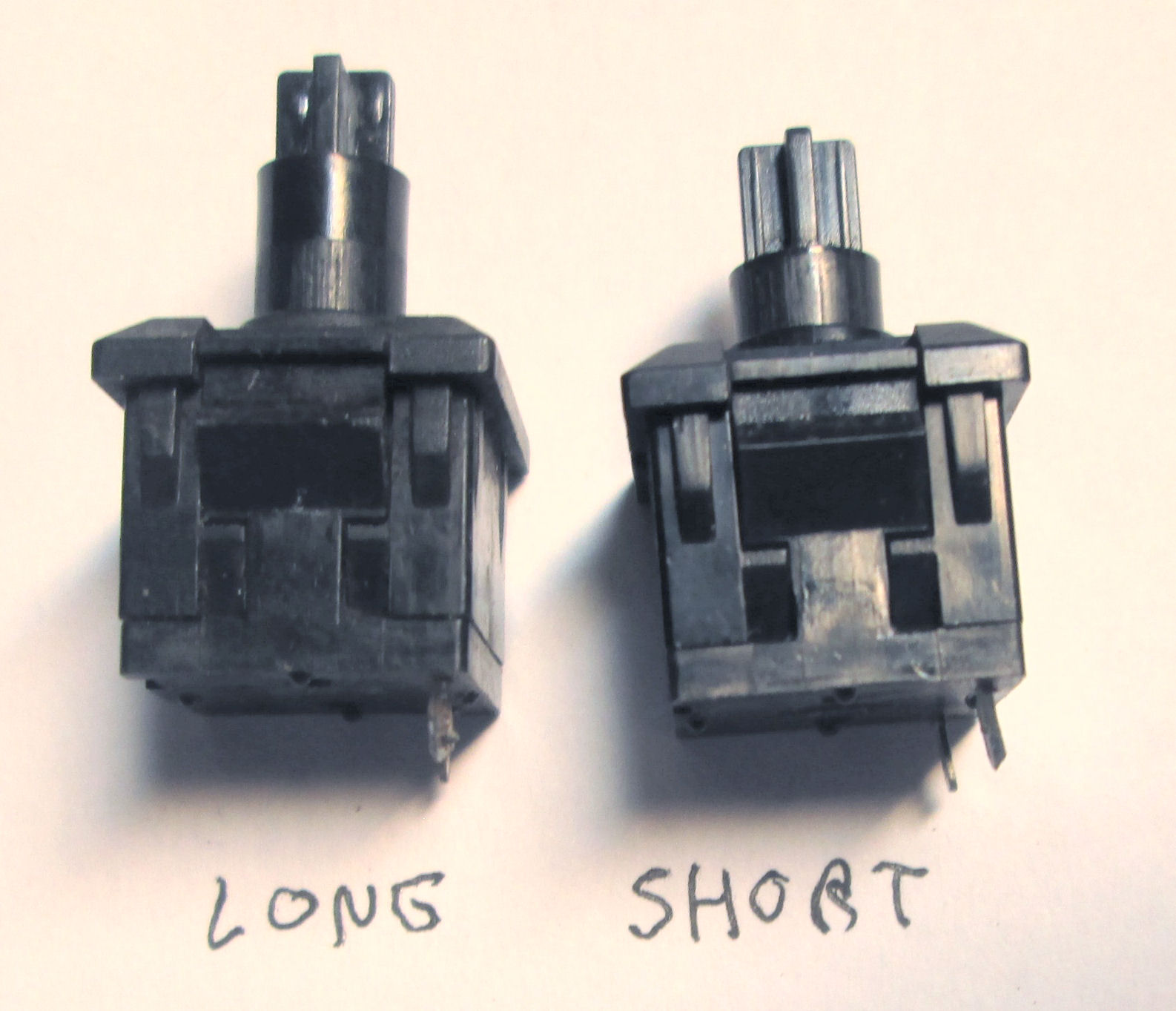

Apple Service labeled 705-0070 "ALPS long stm kyswitch Mac Plus". Possibly "SKCCAF" Alps SKCC Tall Cream. Likely used in the the original Macintosh 128K and 512K keyboard, and the USA-sourced M0110A Plus extended keyboard.

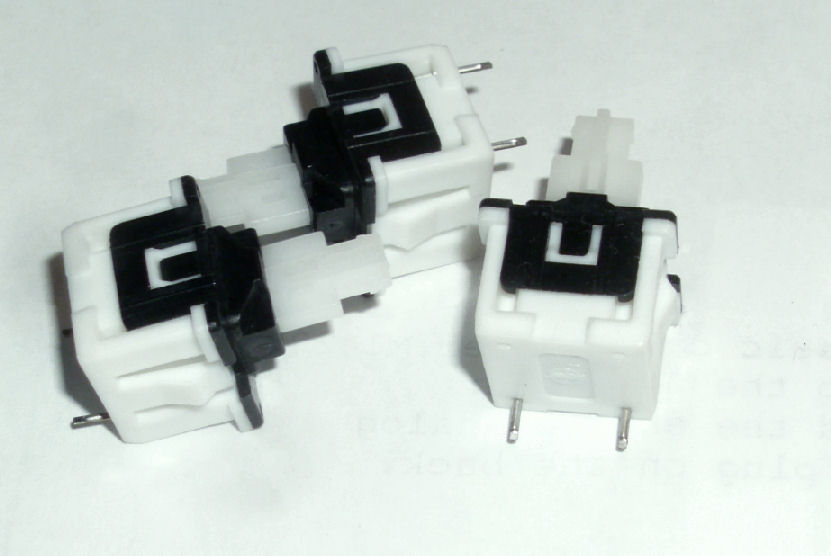

bag hand-marked 705-0104 "Mitsumi" for Apple IIe enhanced keyboard, and non-USA-sourced "Mitsumi" Mac Plus extended keyboard M0110A

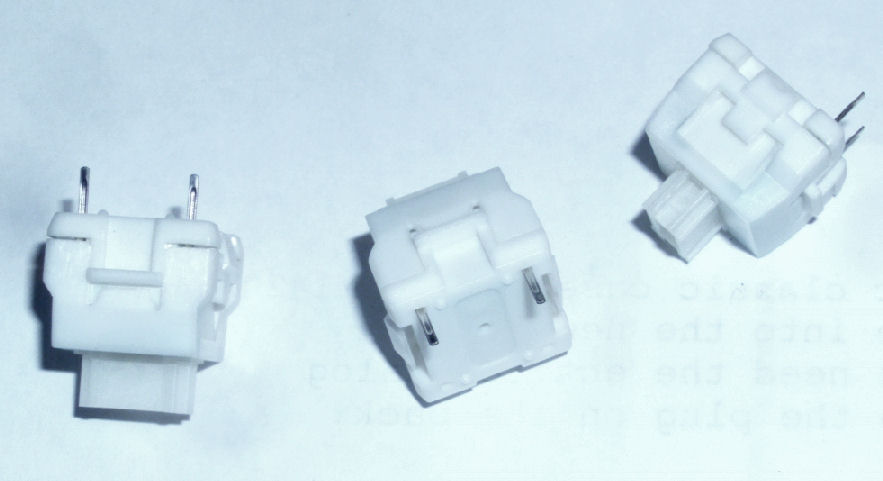

OUT Apple Service lable 922-0005 "kysw set, adb kybd, all white". Hand labled "extended kbd", probably Apple Extended Keyboard II. OUT.

------2024 stock, identified by seller as unused, not in original Apple bags. No solder on pins. -------

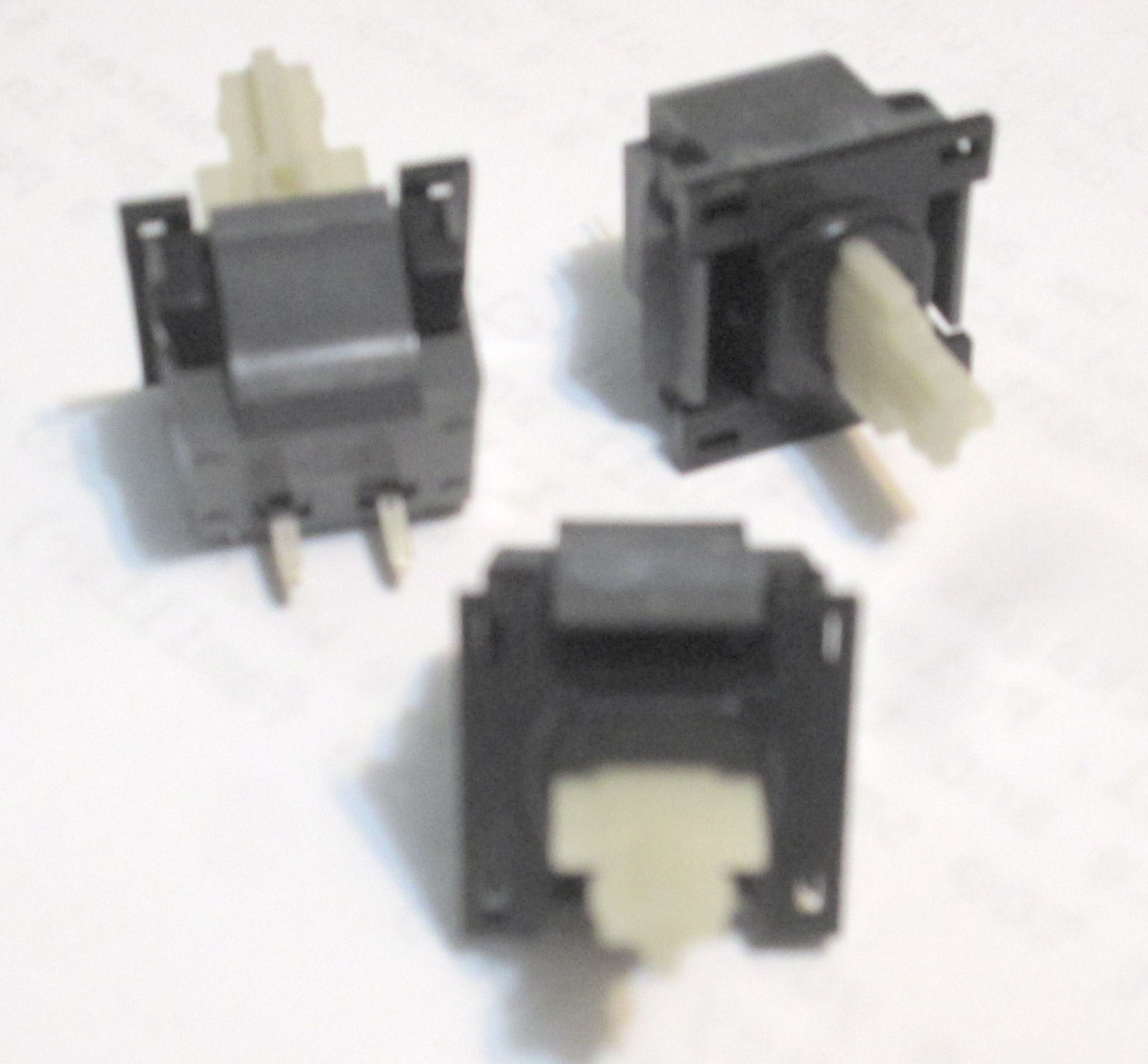

no info from seller

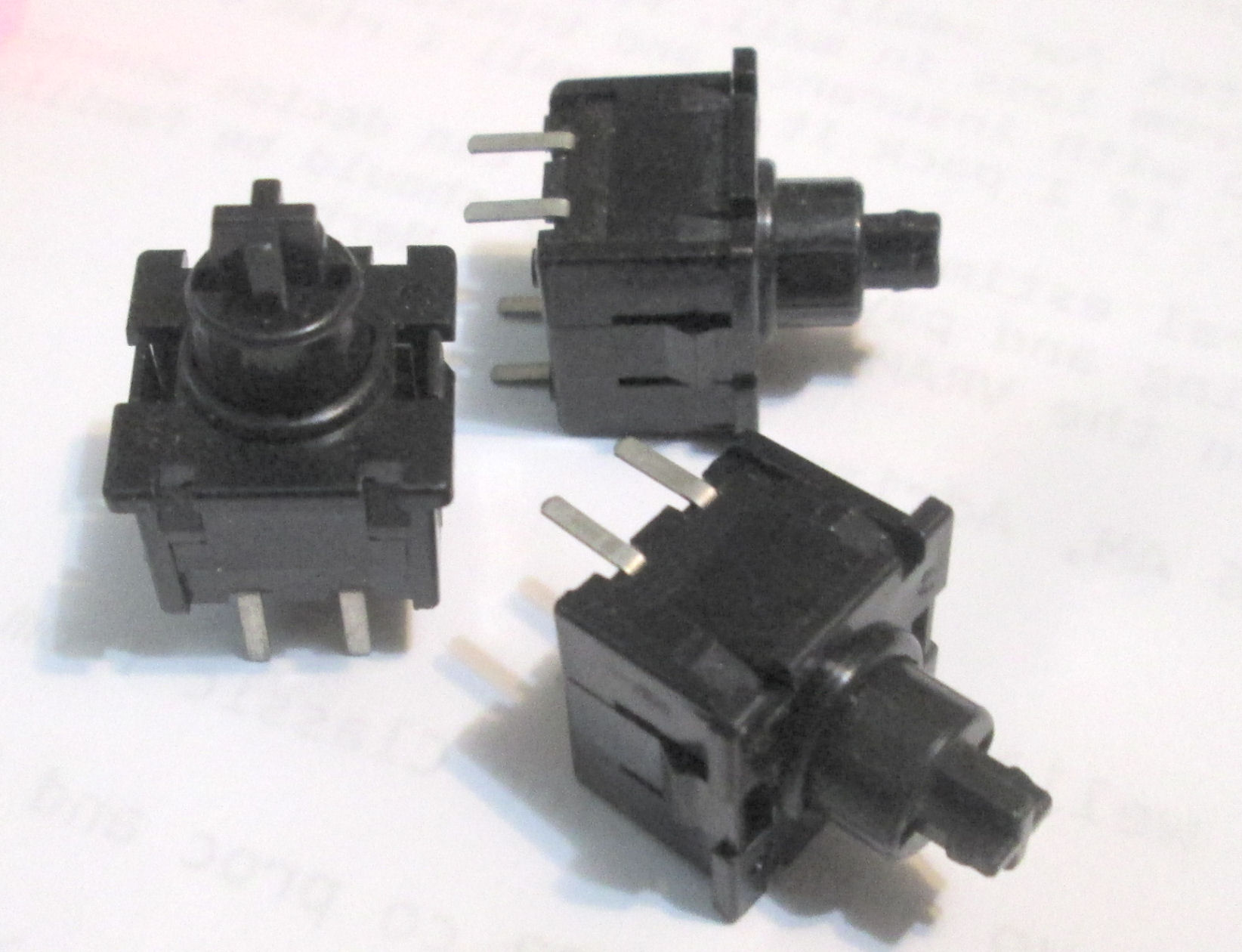

Likely ALPS dummy keyswitch. Four pins, long-side connected but no contacts on short side. Only a few.

identified as 705-0015
Likely ALPS short ivory stem keyswitches. Two pins. Only a few.

identified as 705-0040

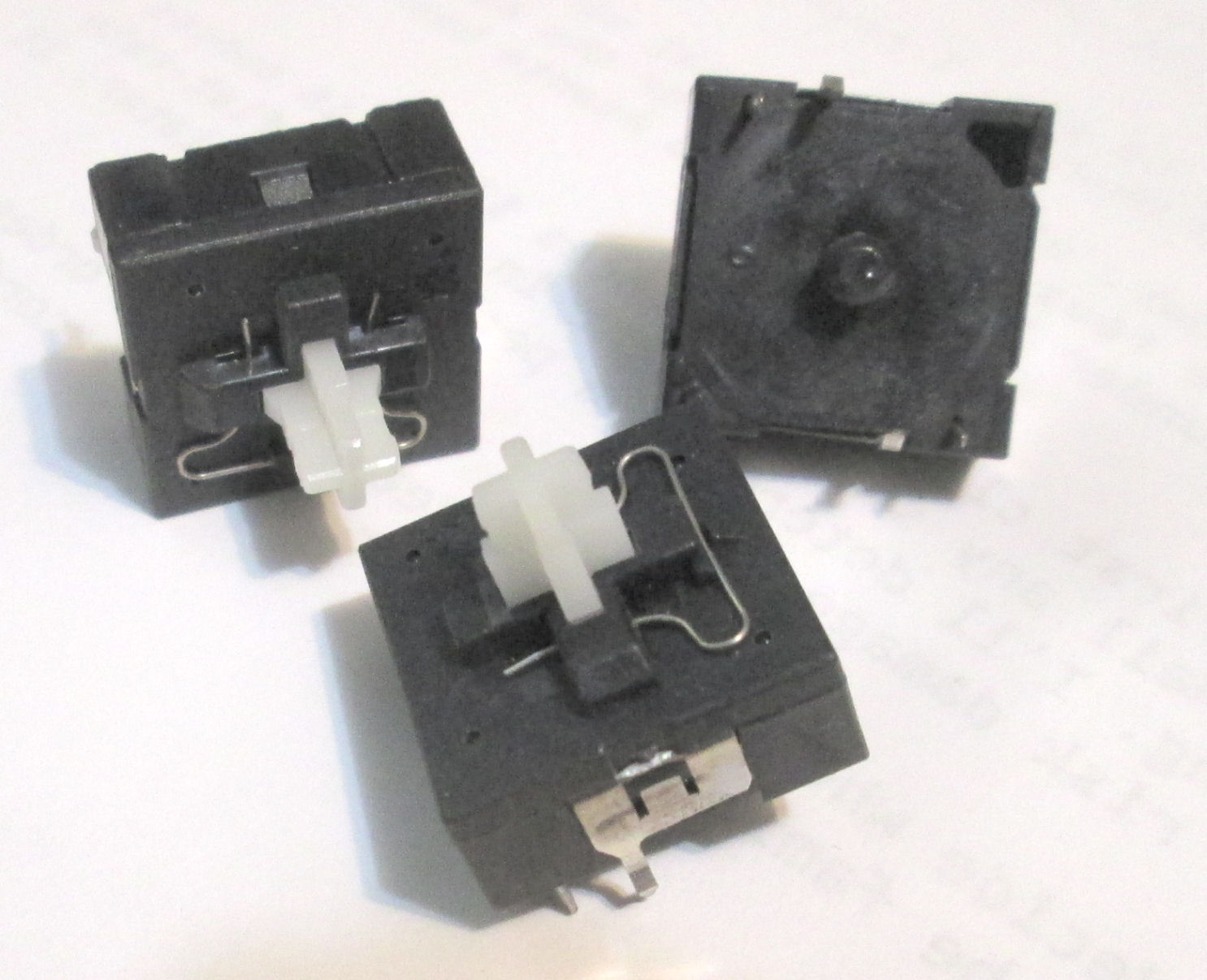

short white stem keyswitches, with clip on top. Wide square body. Apple logo on body? Two pins. Several.

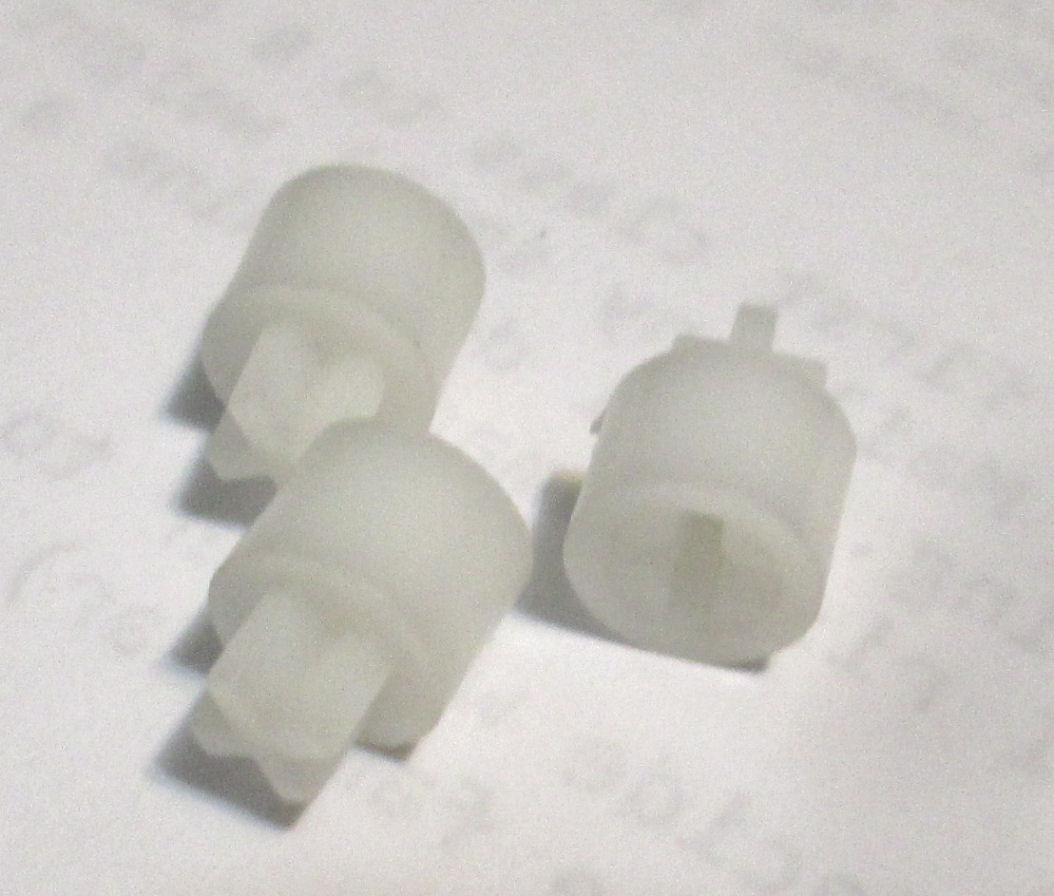

identified as 815-0772
Alps short white stem extenders, cross stem.

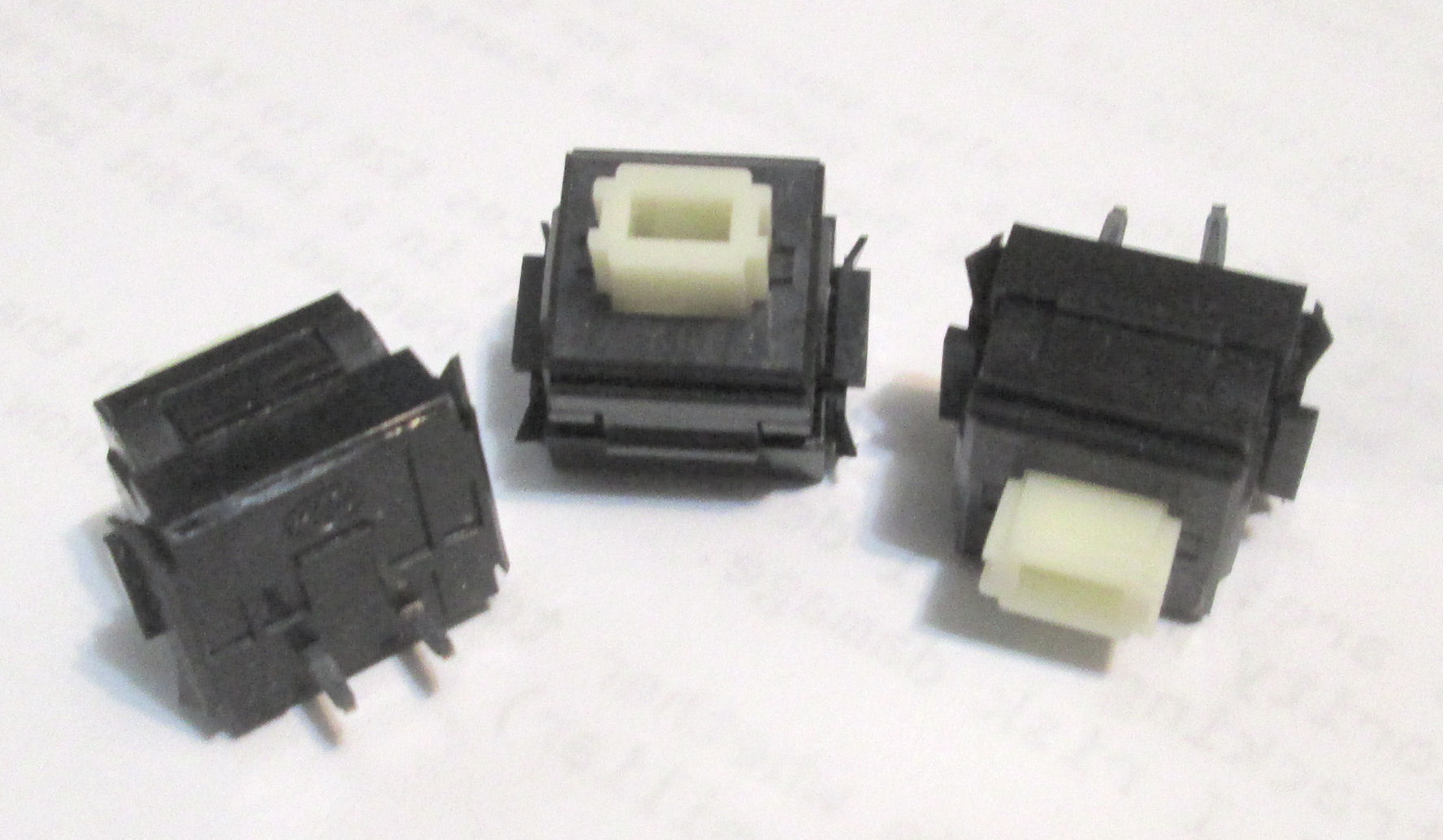

identified as 076-0209

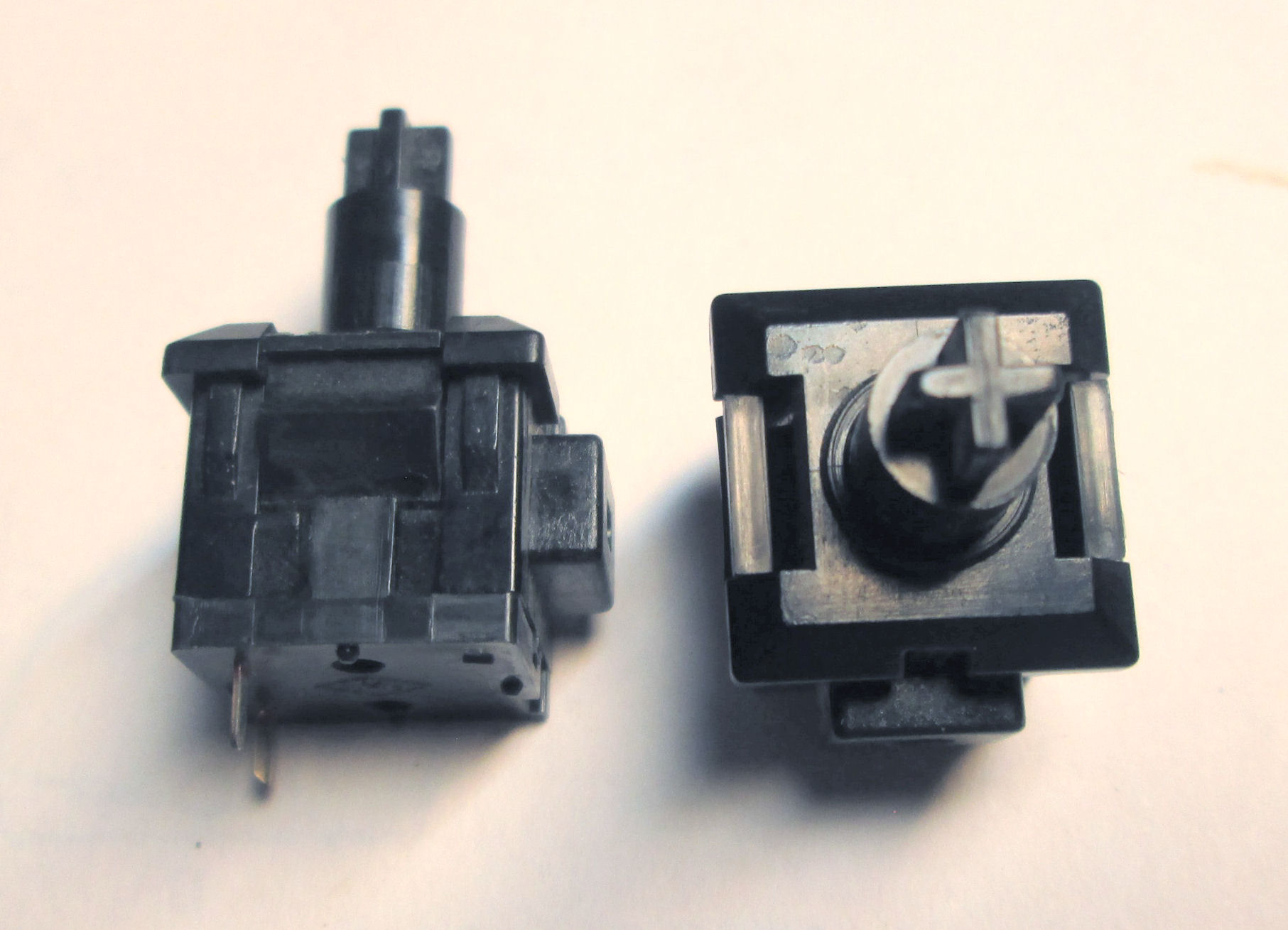

Alps SKCM Cream Damped or "SKCMBB". Slight greenish florscence. only a few.

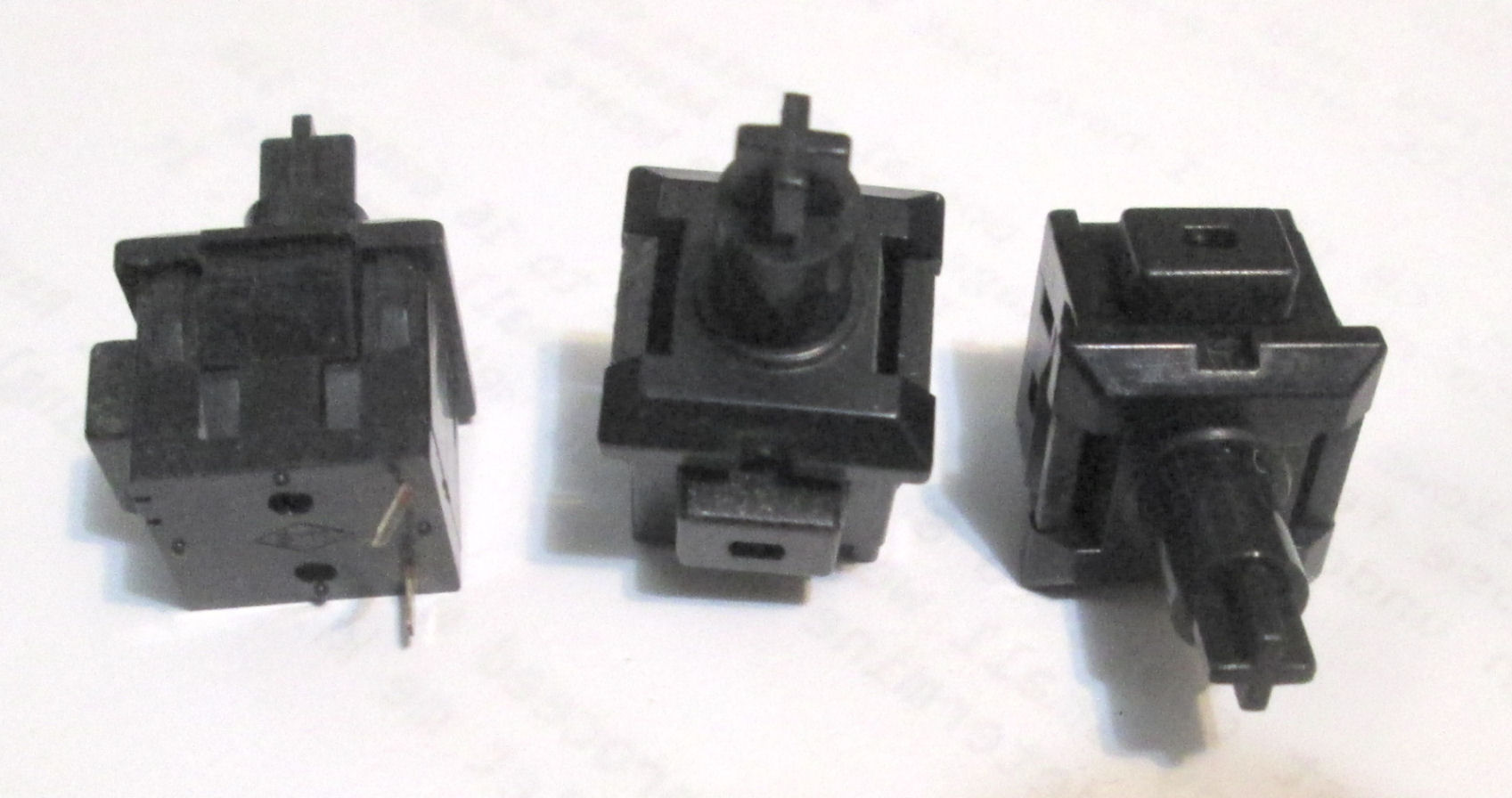

identified as 705-0081 or 705-0082

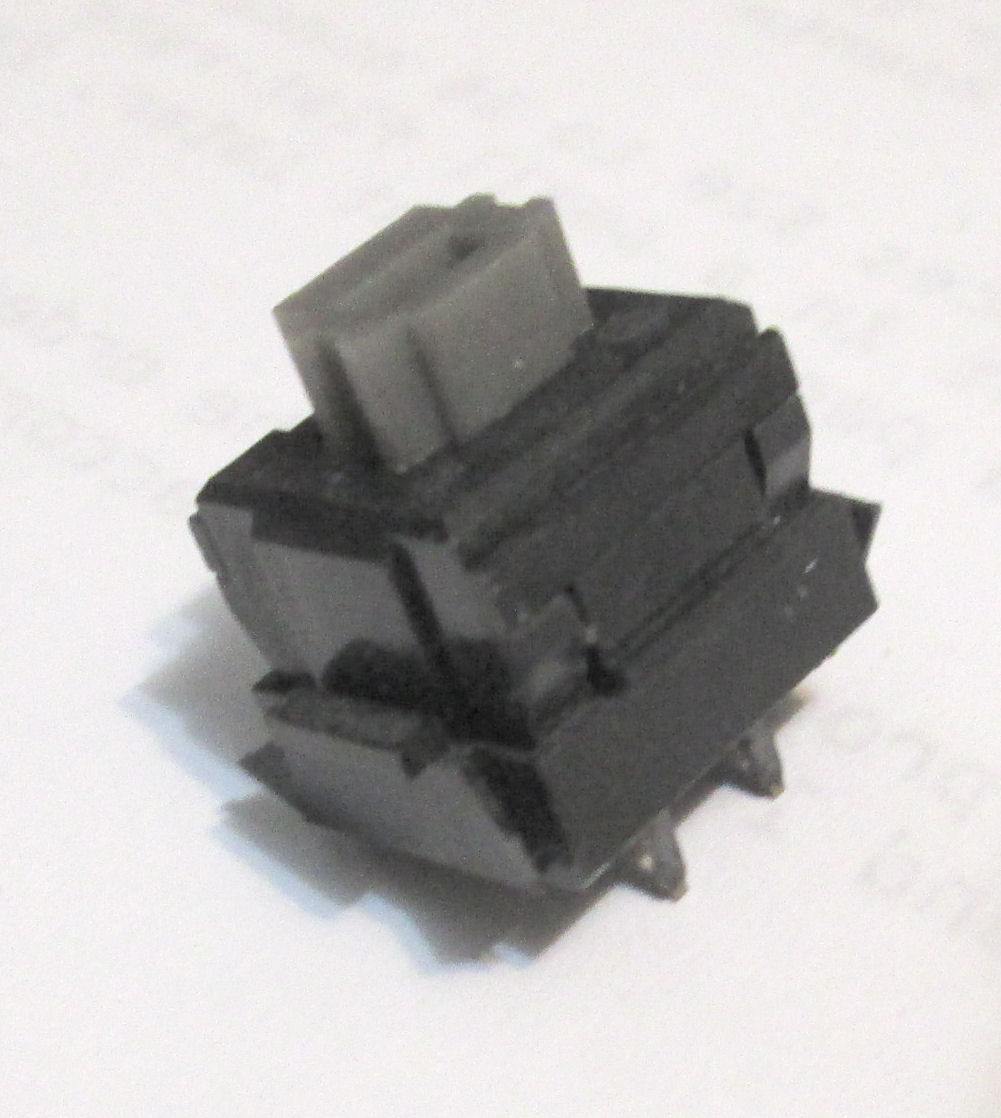

SMK *locking* Black short-stem crossed switches. rectangular bump on side. Otherwise like non-locking on Apple IIe,
some Mac Plus keyboards. only a few.

identified as 970-1263
ALPS *locking* grey stem. only one.

identified as 076-0075
ivory stem black body. many.

identified as 705-0070
ALPS long ivory stem. Like Macintosh Plus USA keyboards. several.

Apple bag 705-0044

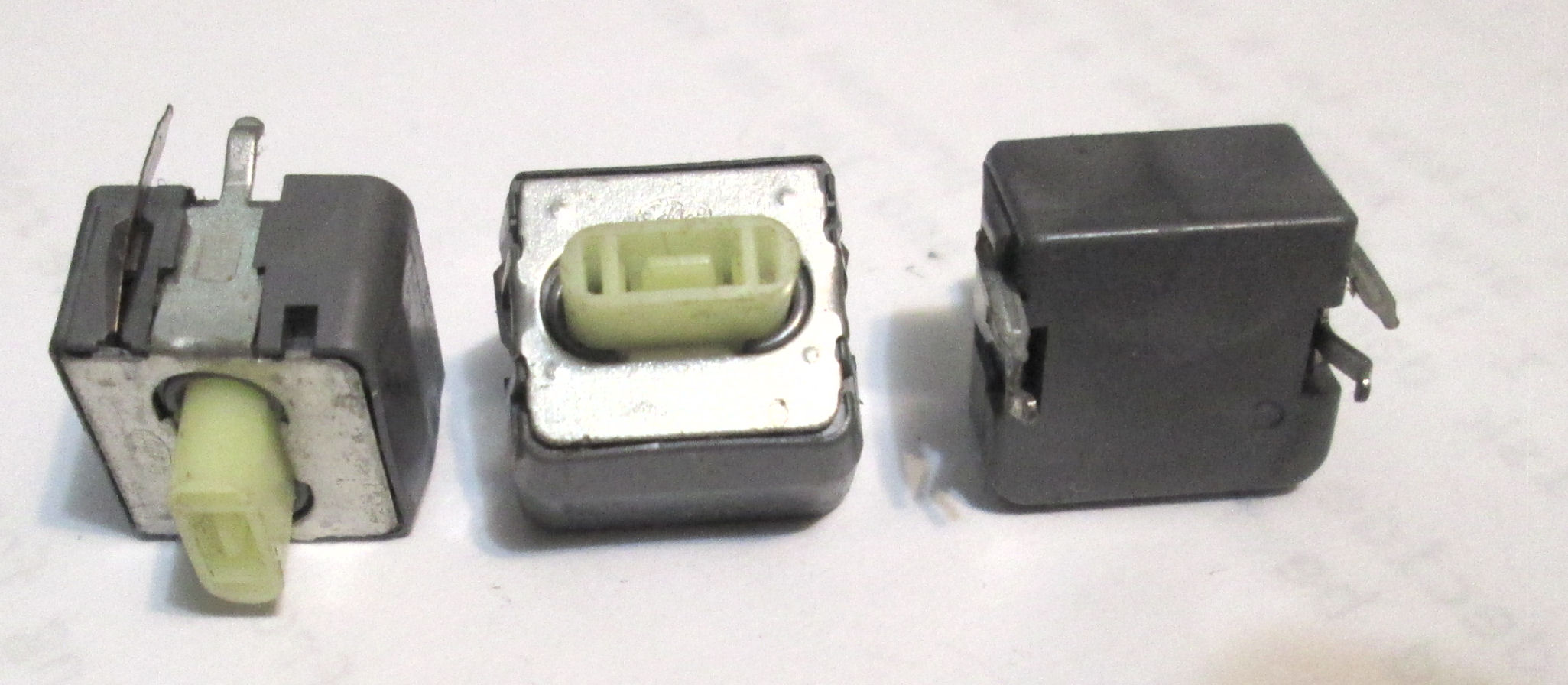

"locking Mitsumi keyswitch" short white stem. Like Macintosh Plus Japan keyboards. a few.

identified as 705-0102

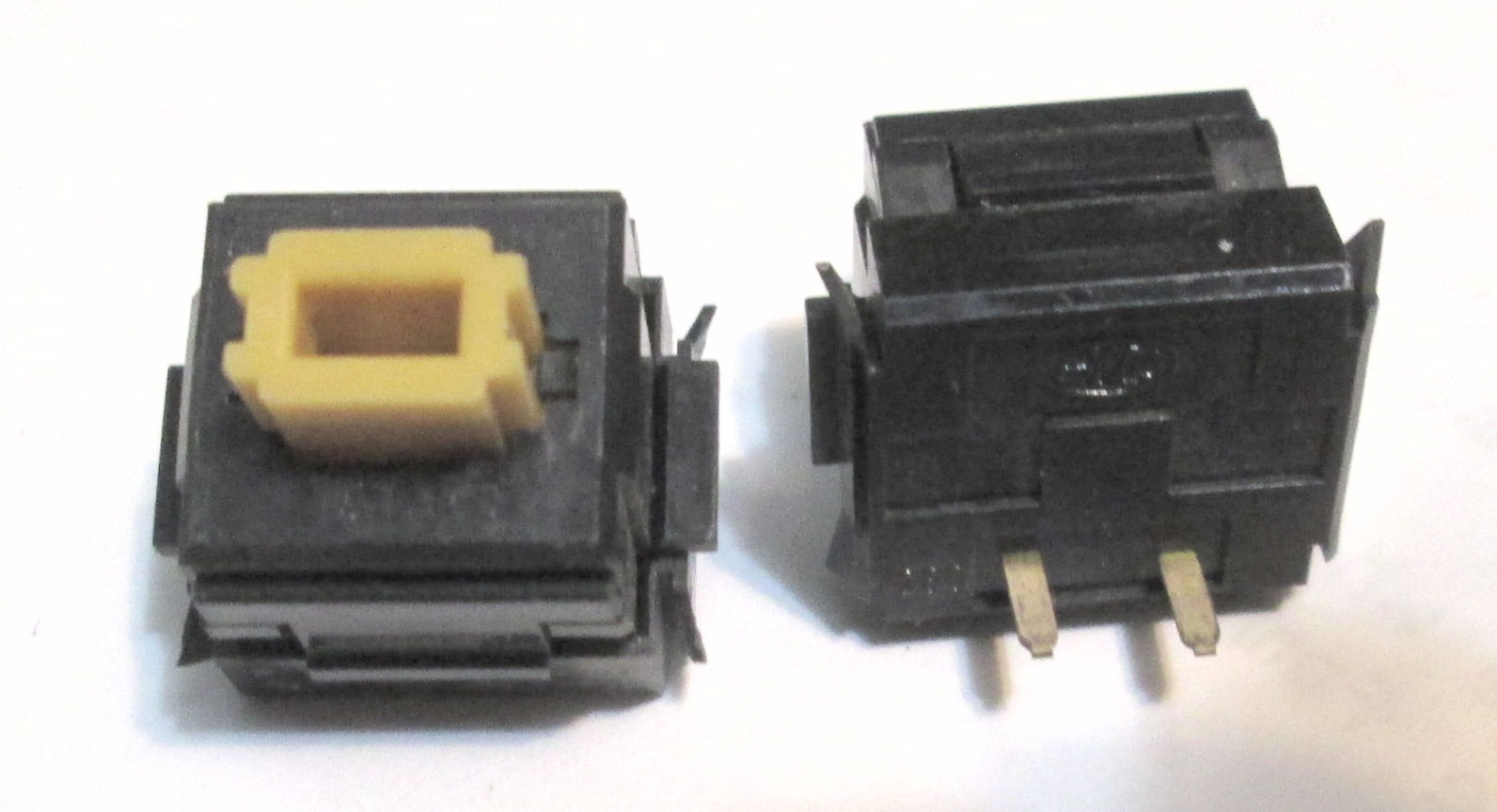

ALPS *locking* lime/yellow stem gey body keyswitch, four pins, two on metal armature. several

identified as 970-1262
ALPS amber/yellow-stem keyswitch, clicky. only two.

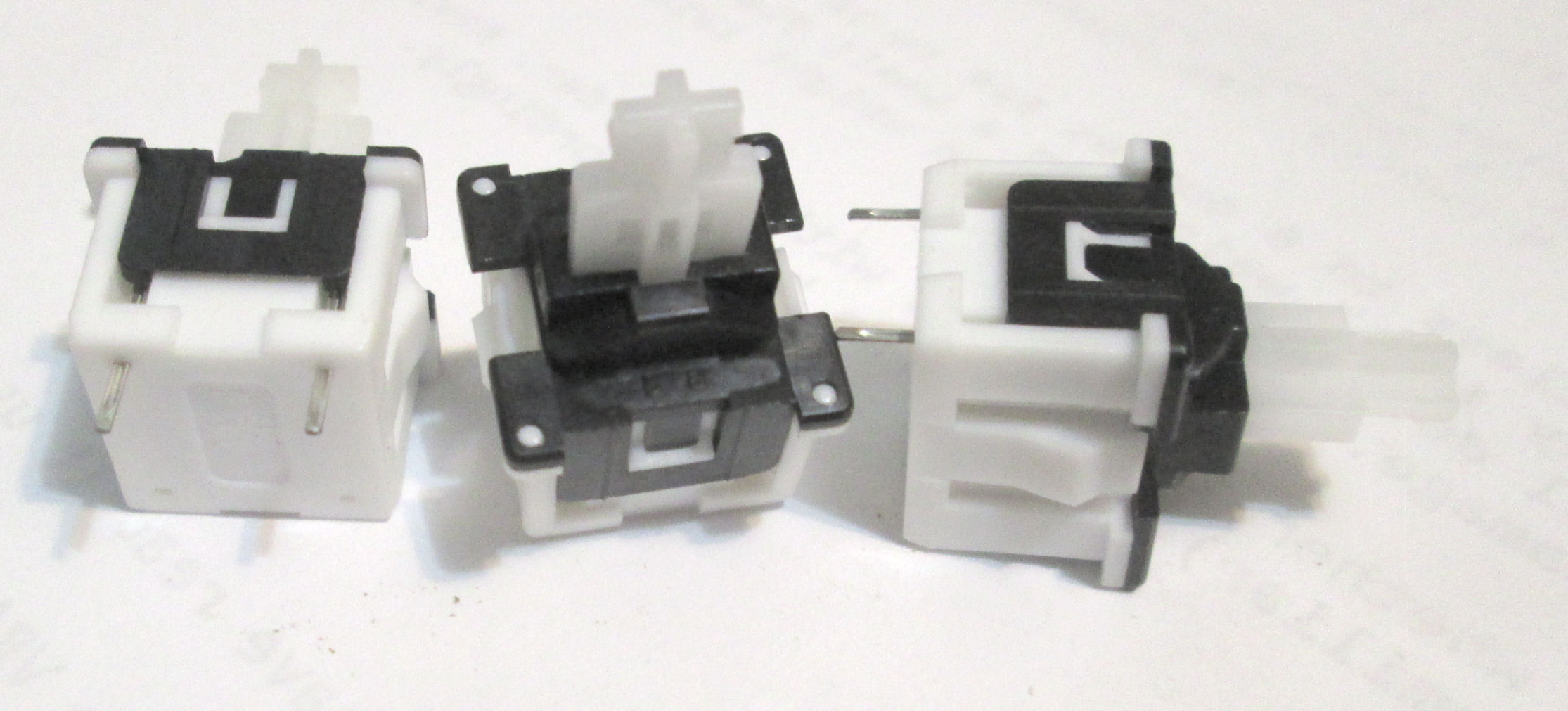

identified as 705-0104
Mitsumi? White short cross-stem. Black/white body. only a few.

used pulled Mac/Apple keyswitches

I have Apple II or Mac keyboards from which I can desolder keyswitches. These will be used of course but I can test with an ohmmeter. Presumably you want these for repair. So please 1) identify the keyboard model you are repairing and 2) if you can, identify the keyswitch by photo on this page, or at least a description, or your image. Also, 3) do you need a locking/caps lock keyswitch? But the price goes up for additional effort, work, selection, or discussion. Thank you.

I have some Apple II keyboards and parts on another Web page.

The following are samples of actual Macintosh keyboards and their keyswitches. It's possible other keyswitch models were in use for a given keyboard model. If you wish to purchase or see keyboards, the ADB keyboards are identified and priced on a keyboards and parts, Web page, while the Mac Plus, 128K and 512K keyboards are identified on another "Mac collectables" Web page.

Apple Desktop Keyboard A9M0330 "made in Tiawan", photo on the left shows two keyswitches in place. the left-most keyswitch is caps-lock (white stem, depressed) and the right-most is not caps lock (white stem undepressed). The photo on the right, shows the pulled keyswitches from the board. Note that in sunlight, there's a slight greenish color to the white. Different versions of this Apple's early ADB keyboard are on this Web page. Generally they are distinguished as from Japan, Tiawan or the USA.

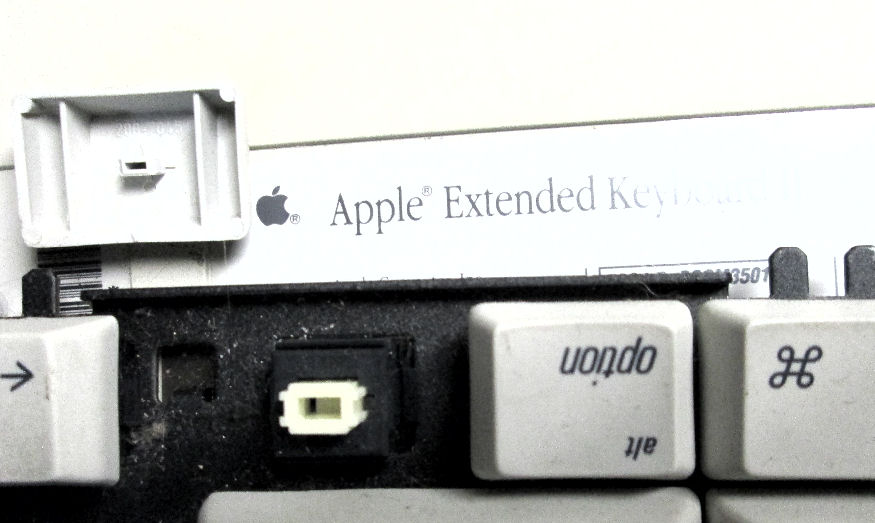

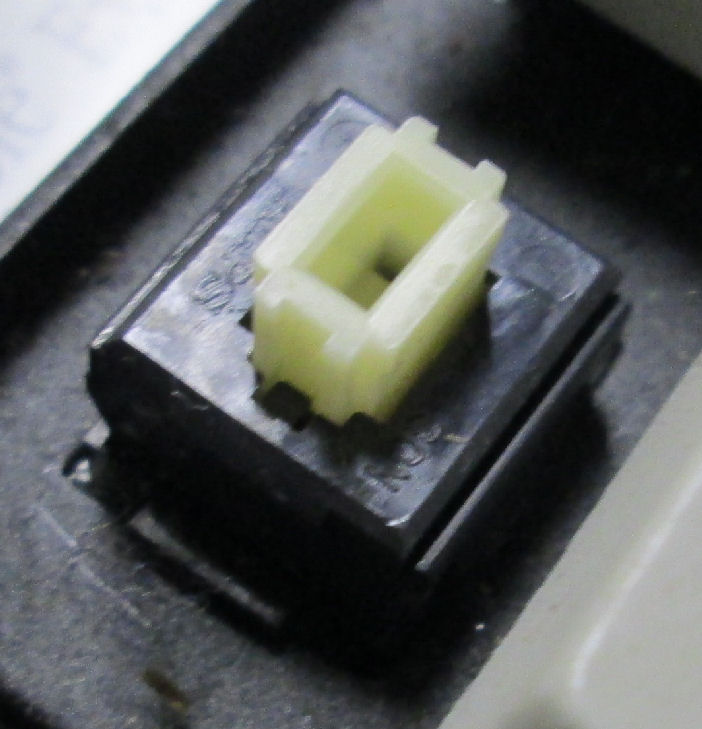

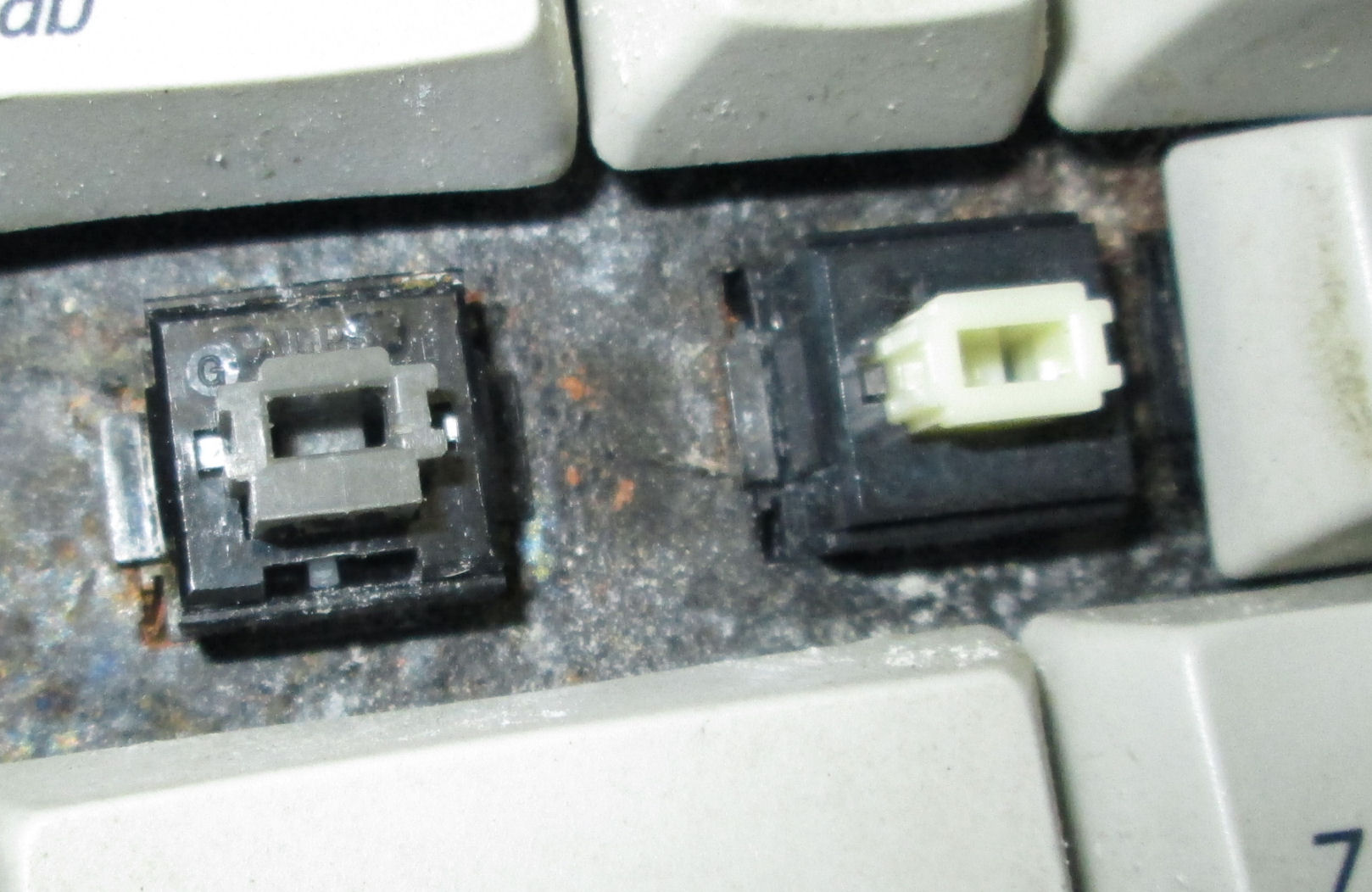

Extended Keyboard II M3501 "made in Tiawan", photo on the left is the keyswitch (greenish white stem) and cap. Here's a closeup of the keyswitch. The photo on the right, the caps-lock keyswitch is grey-stemmed/

I have/had an AEK II keyboard with salmon keystemmed switches; some of the AEK's also came with salmon. In this photo, the capslock switch is white.

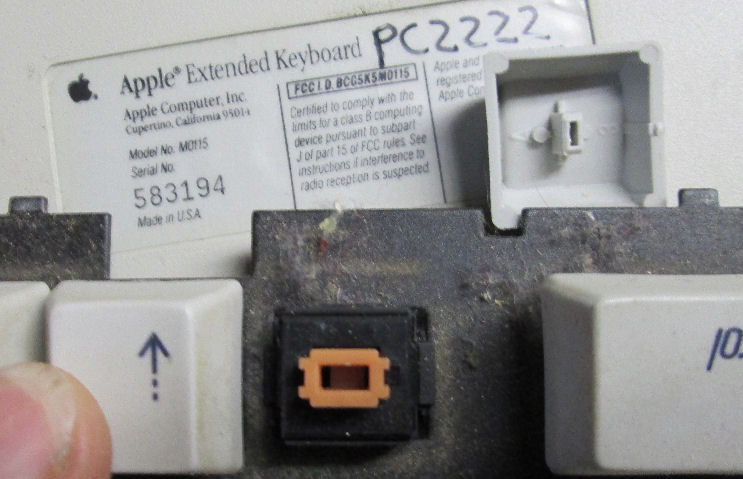

Extended Keyboard M0115, keyswitch (orange stem) and cap, on the left. On the right, the caps-lock keyswitch is white stemed with that green tint.

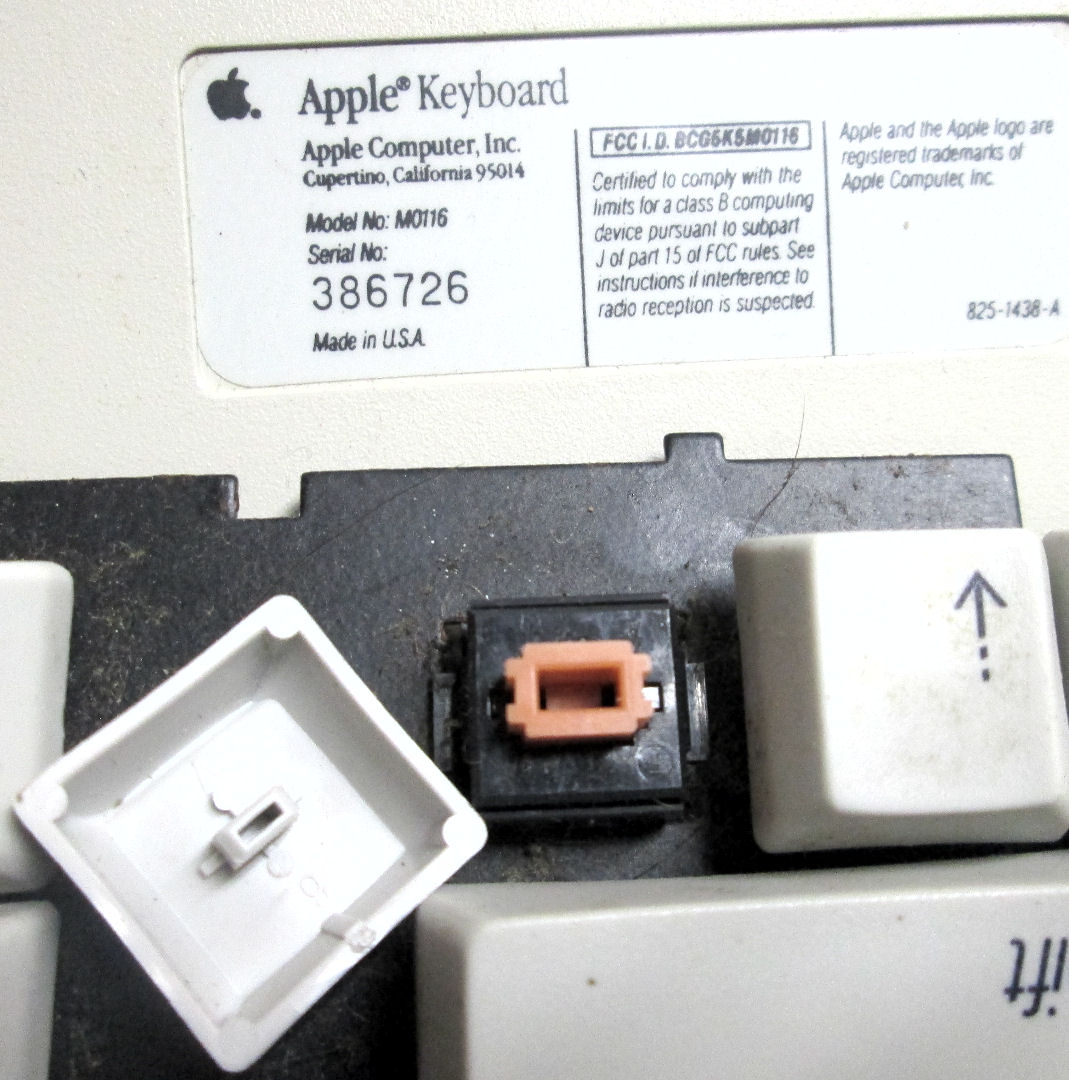

"Apple Keyboard" M0116, orange stem keyswitch

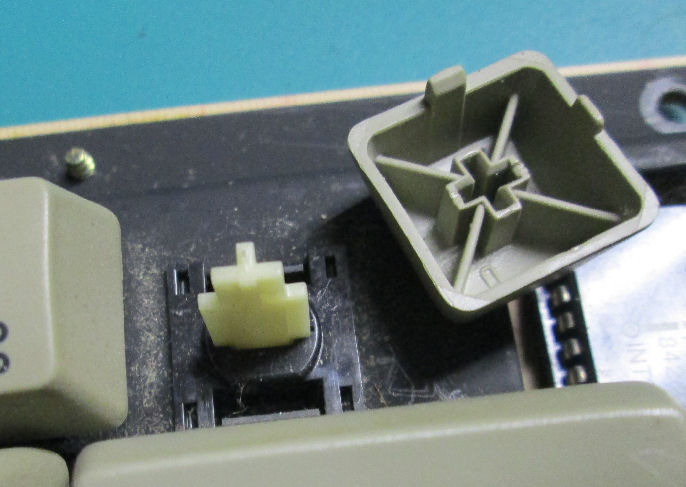

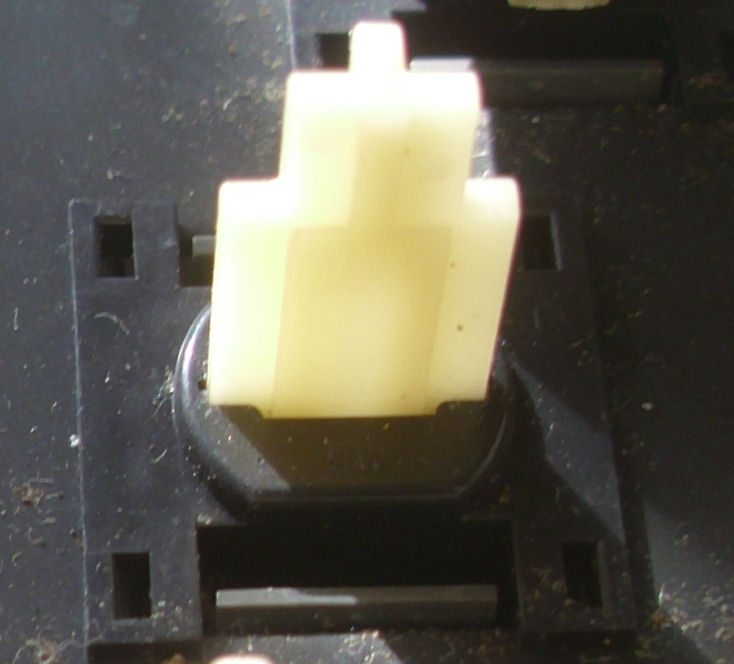

128K, 512K, Plus "made in USA" keyboard M0110, M0110A, keyswitch and cap Compare these key switches to the non-USA models below. Note these have a "T" cross-section to hold the keycap; and the base around the key stem has an oval or ellipical shape. Here's a photo of the USA keyswitch in place. These keycaps are very similar in color and structure to keycaps on an Apple IIe keyboard on another Web page.

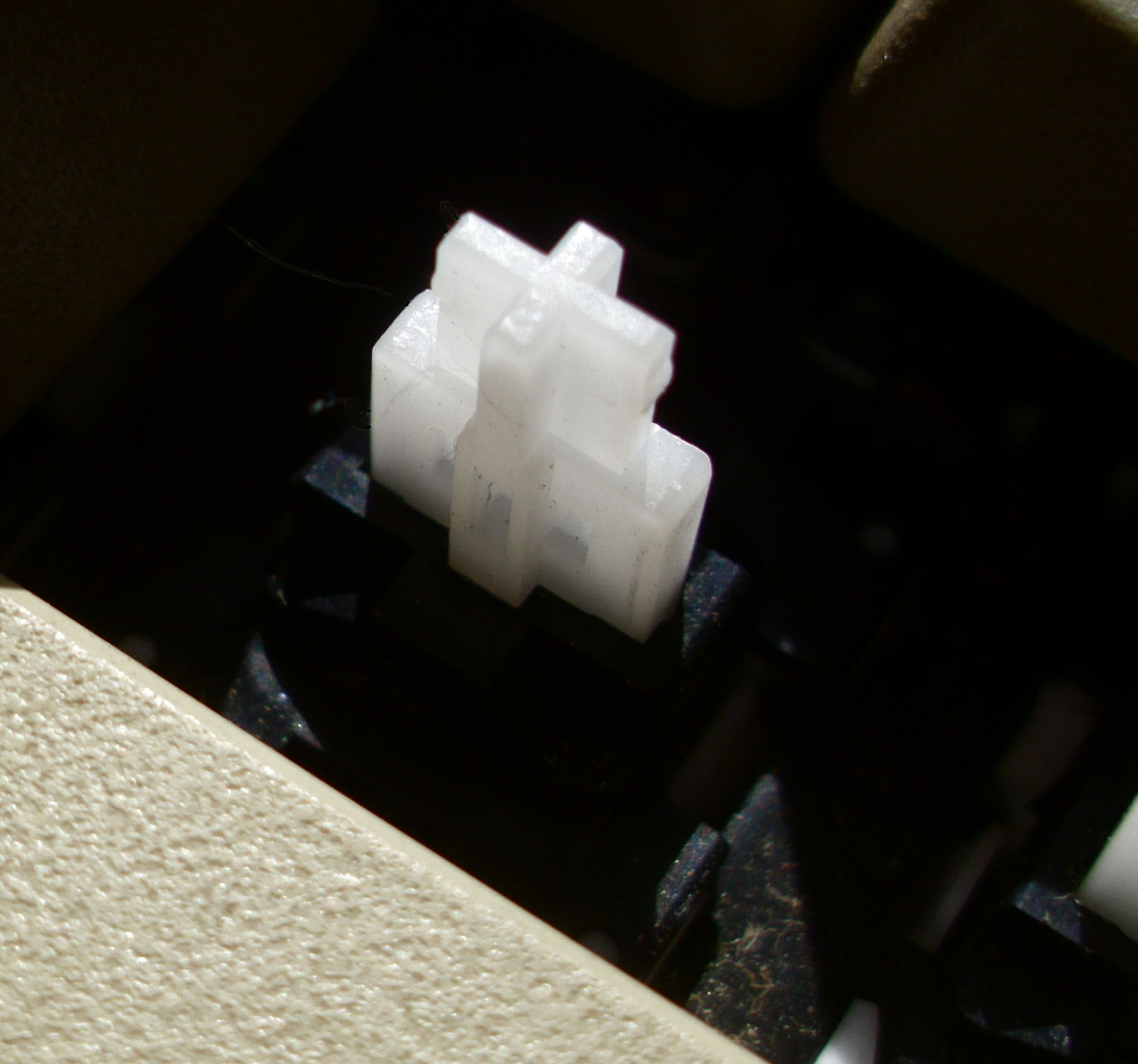

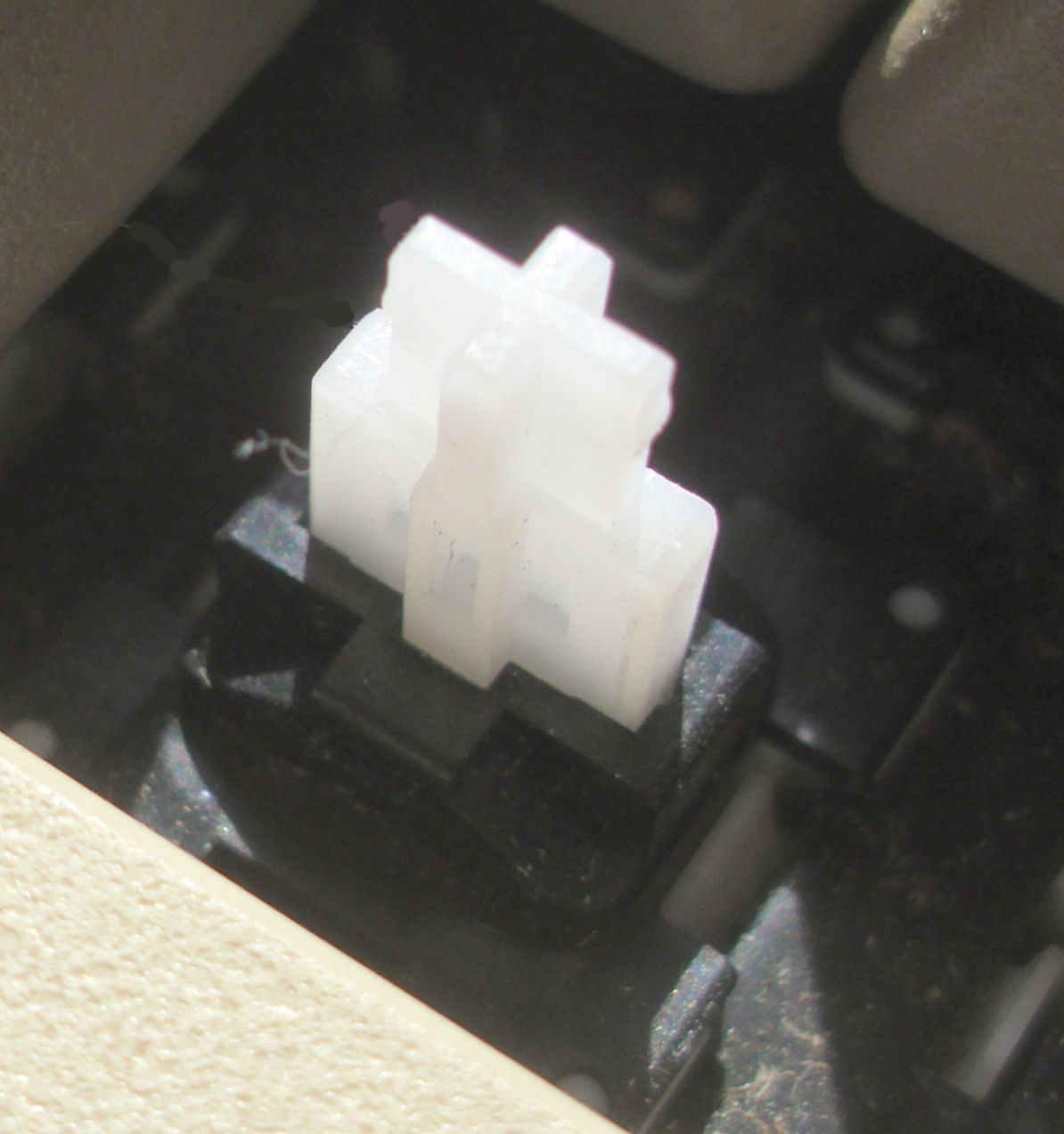

128K, 512K, Plus "Malaysia" keyboard M0110, M0110A, keyswitch and cap The keyboard circuit board is marked "Mitsumi" and other non-USA-made Plus keyboards may be of this type. Compare these to the "USA" Plus keyswitches. Note these have a "X" cross-section to hold the keycap; and the base around the key stem is rectangular and has "ramp" structures. This photo shows more contrast. Thanks to Marek Lyczba for calling these to my attention in Nov 2016.

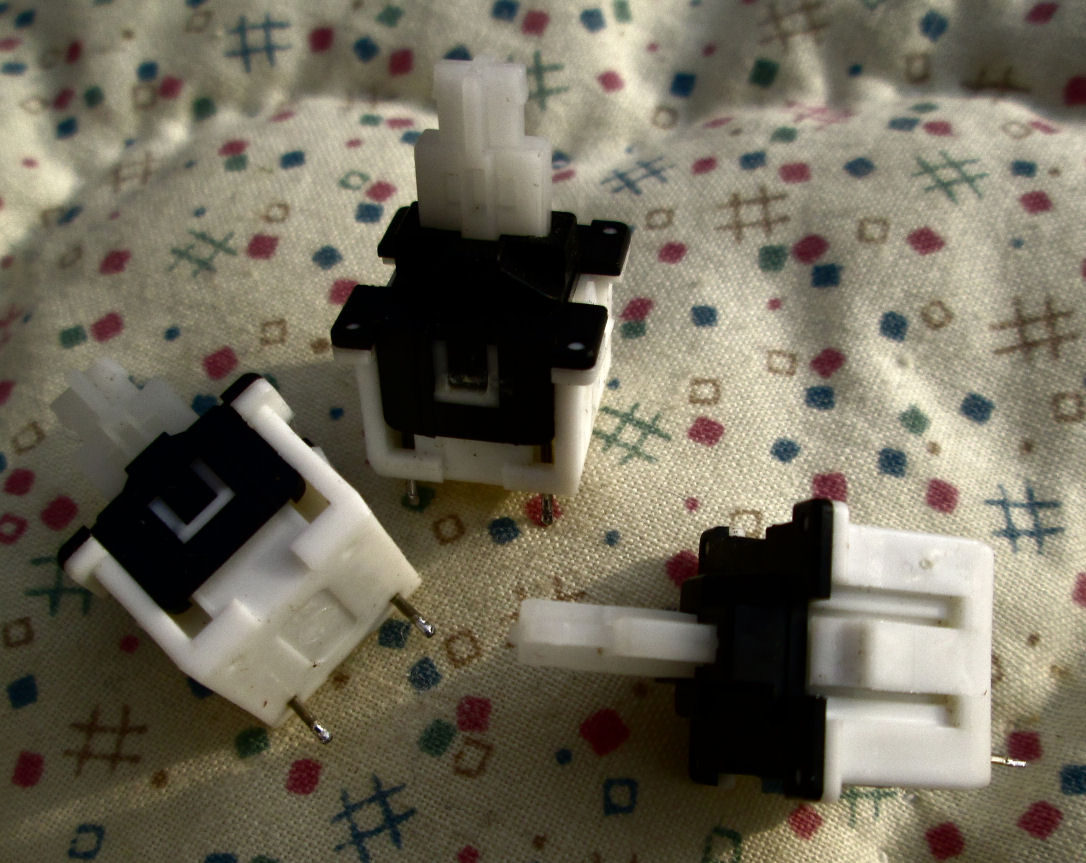

IIe extended kbd, Mitsumi kbd. Keyswitches removed from an Apple IIe with extended (numeric keypad) keyboard produced by Mitsumi. Appear identical to the 705-0104 keyswitches described from Apple service parts.
