This Web page last updated Julu 29 2023. This page lists my various Heath and Zenith computer manuals and magazines of the 1970's and 80's. The bulk of them, are for the Z-100 series systems, many are H-8 or H-89. I have more information on those systems on other Web pages; links are below.
On this Web page:
If you are shopping for Z-100 or Z-120 or Z-110 software and hardware manuals and diskettes, please review this page carefully. (A few other Heath computer models are listed too). It will inform you about the kind of documentation and software available for those Heath/Zenith systems. The size and number of manuals, and numbers of products, are considerable.
These manuals are "large" 8.5 X 11-inch 3-ring binders or half-sized binders, some are in pairs per product. There may be two or three diskettes per product. The condition of decades-old diskettes and manuals will vary. As these are not high-demand items, I cannot keep track of every one of them; I may have more or some may not be available. They are not easily handled or assessed for value - they aren't give-aways. Shipping costs will be signifigant and depend on weight & size. Therefore: be patient when requesting quotes for these, and be selective. Thank you.
Page counts are approximate, weights are for shipping purposes. "Half-sized" means manuals are 8.5 inch by 5 inch weight may be 3 pounds. Otherwise manuals and binders are 8.5 by 11-inch pages, in 3-ring binders, typically weighing about 3-4 pounds each. Diskettes are 5.25-inch, there may be a few per product. Manuals and disks are believed to be complete and in the condition described. Original diskettes will be examined but are not guaranteed due to age; recent copies may be available. All these items are sold AS IS NO RETURN.
On another Web page, I have my general Heath and Zenith computer Web page, with links to all my other Heath and Zenith Web pages.
On my Heath-Zenith sales page, I offer a COPIED set of Z-100 operating system and diagnostic disks. Check there for details.
Please go to my Heath/Zenith computer home page for a list of links to all my other Heath/Zenith Web pages, and for descriptions of Heath computing products I have on my Web site, and for related Web links.
Ordering information and how to email @ me can be found in this notice.
On my Heath-Zenith sales page, I offer a COPIED set of Z-100 operating system and diagnostic diskettes. Check there for details. On this Web page, I'm offering ORIGINAL manuals, some with original disks. I likely can provide copies of disks, ask.

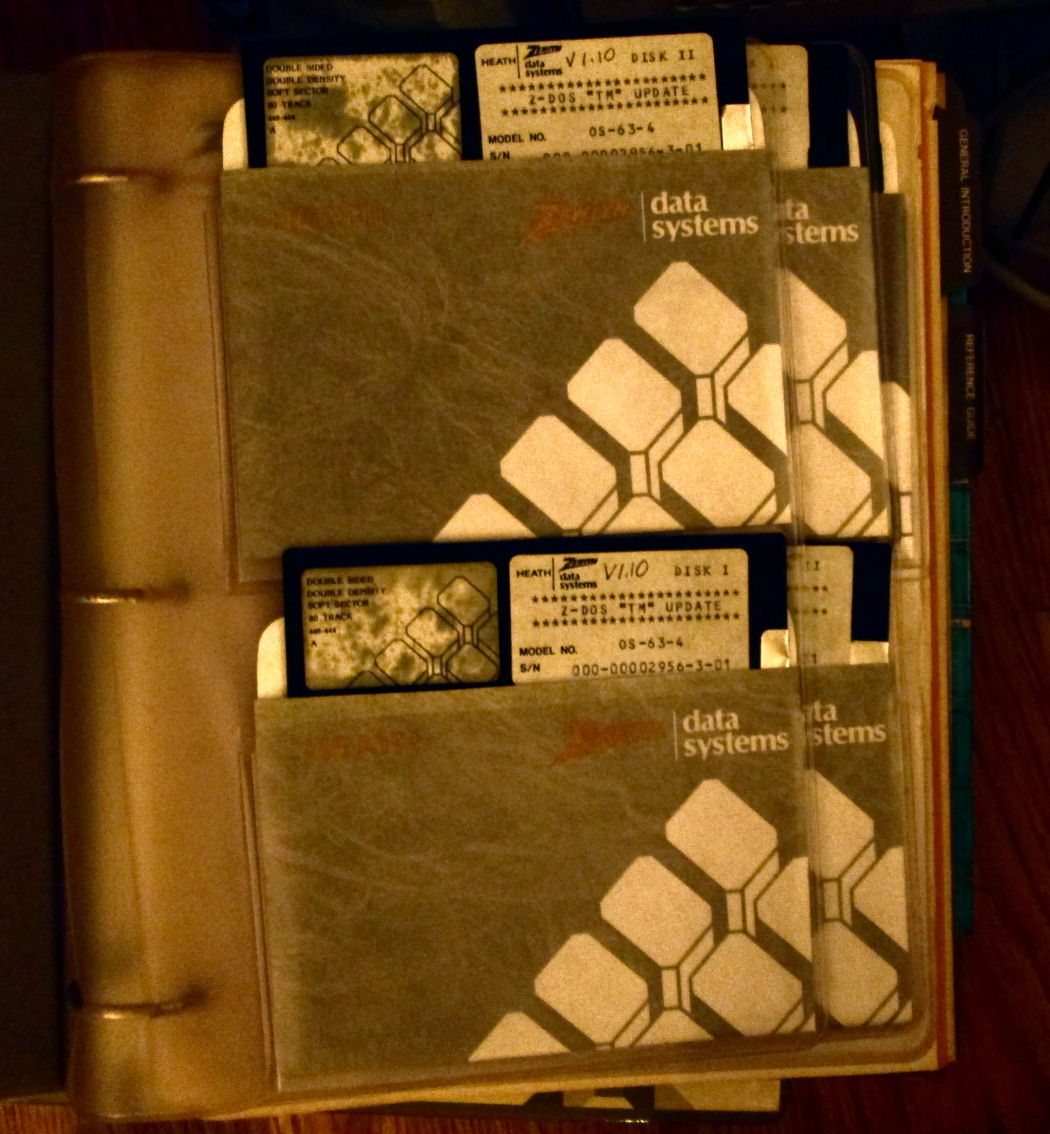

Here's a set of ZDOS 1.0 and 1.1 diskettes, five in all
Some of these have water staining, wrinkles on early pages.
Some binders need to be cleaned of mold stains. Most are in good shape.
Brown was the old color for the binders,
Later were white binders as I'll identify.
Box of Heathkit Continuing Education manuals (some moisture damage on some pages)
--------------------------------------
- Microprocessor Flip Chart set 597-1649-01 1977
- Electronic Test Equipment: Special Measurement Instruments. 595-2266 1979
- Electronic test Equipment: Frequency Generation and Measurement. 595-2232
- BASIC programming 595-2045-03 1983, 1977
Box 1 Zenith Z-100 manuals, in binders.
----------------------------------------
white, Z-100 Users Manual 593-0037-06
white, Z-100 Tech Manual, Hardware (2 copies). 595-2918. 593-0038. schematics and logic descriptions
white, Heath/Zenith, Z100 Technical Manual vol 2 595-2892-01, Appendices 595-2960
no disks. Tech sheets for chips. Also Intel iAPX 88 Book,
half-sized book on 8088 processor.
white, Heath/Zenith, Z100 Technical Manual (192K) Vol 1, Hardware 595-2918-04
Schematics Main Board, kbd, video; and hardware descriptions. Yellowed.
Z-100 Technical Manual Vol 2, 597-3438. floppy, power supply, chassis. descriptions and schematics.
ZBASIC Compiler, (no binder, water stains) 595-3068
Z-Basic for ZDOS, Quick Reference (8 X 5 size) 2 copies. 395-0038
Box 2 Zenith Z-100 manuals, in binders.
---------------------------------------
H/Z-100 Series Disk Based Diagnostics (no binder) 595-3142-05
Lotus 123 w/disks. 595-3078-2
Zenith MicroPro Supersort w/disk 595-3085
Zenith Microsoft Multiplan, no disk, 595-3080-01
Zenith Z-DOS Vol II no disk, 595-2817-03
Zenith Condor FMS rDBMS File Management System, no disk. 595-2817-03
Zenith CP/M-85 Vol 1. Pages tabbed by owner. 595-2824
--- also, loose 8 X 11 bound manuals:
Appendices A-G 595-2843
Alternation Guide Ch. 6 595-2839
System Interface Ch 5 595-2838
Shelf, Zenith Z-100 manuals, in binders unless noted.
---------------------------
Heath/Zenith, MS-DOS / Z-DOS, 2 binders. V1.25 Vol 1 595-2827-02, Vol 2 595-2835-03
ZA-100-1, Boot ROM listings, V2.5, two volumes, full sized.
Zenith Lotus 123 release 1A; manual and binder
four diskettes, LS-463-1
Heath/Zenith, ZBASIC (for ZDOS), 1 binders and manual
595-3074-02 with MS-463-1 diskette
Heath/Zenith, ZBASIC (for ZDOS) vol 1&2, 595-2825-01 & 595-2834-01. MS-463-1 diskette
Heath/Zenith, ZBASIC interpreter, 595-3074. in non-Zenith binder.
ZBASIC (for ZDOS)
Z-DOS FORTRAN Compiler, users manual 595-3075, reference 595-3096, w/disks
Heath/Zenith, Multiplan vol 1 595-2822 & vol 2 595-2823 in 2 binders, MS-463-7 diskette
Heath/Zenith, Multiplan, 1 binder, manual 595-3080 , Quick Ref guide.
MS-463-7 diskette.
white Heath/Zenith, Z100 Users Manual: 595-2892-03. binder and manual. 2 copies
Heath/Zenith, Z100 Technical Manual Boot ROM listings. 595-2962-2 [2 copies]
no disks. 8/11/1982 PL/M sources, 8088 binary. Not in binder, one loose
Software Wizardry brand, Palette (software). Graphics Design Package. in binder,
"reactor-100" demo disk only
in drawer, Z-100 upgrade manuals
--------------------------------
Z219 32K to 64K video RAM upgrade
Z207-3 Z-207 5.25" floppy upgrade
Z205-1 64K memory upgrade
256K memory upgrade
8087 upgrade
ZVM-135, 25 pin RGB video cable and connector
SmartWatch - battery backed clock, for Z100, Z-140, Z-150, etc.
two sets of manual and diskette
256K RAM Board H-205, 80 pgs Low Profile Computer, Assembly, H-100-1 All-in-one computer, Assembly, H-121 8MHz & 256K RAM upgrade for H-101, H-121: HA-108 H-217, pictorals only Z-207-3 5-1/4" floppy drive for H-101, H-121 (pictoral) Winchester Drive Accessory H-217 CDR317 (hard drive controller) instruction manual from Scotty Systems --one manual for OMTI 3100 SCSI card, no docs on this card --one manual for Xebec 1410A SCSI card, no docs on this card Scotty Systems MSDOS ZPC emulator version 2 manual Scotty Systems MSDOS ZPC emulator version 2.1.3 manual
These are manuals for Zenith computers after the Z-110 and Z-120 "Z-100" or S-100 based systems. These are much like the IBM PC systems built in the same era. They are not of much interest in the 21st century: I get an inquiry every YEAR OR TWO. I can't keep these forever.
These are Zenith's early PC compatible systems. Here's a Web link to an example Z-148 system. They are IBM-PC like, not S-100 and not within my interests. In the 21st century, there appears to be very little "vintage" interest in them, they don't seem to sell for very much, tens of dollars. I only have a few manuals, the manuals are for sale as listed below.
Z-140 PC Owner's manual, half-sized, 595-3393-01, still wrapped Z-150 Disk Based Diagnostics disks OB-4164-29 , 2 sets each in envelope Compact Personal Computer H-148 ( 3 copies) Parts lists and schematics, Z-140 series (3 copies) Desktop Personal Computer H-151 Heath/Zenith Partnership Packs (2)
These are manuals which I may copy but not sell as originals. Ask, however.
Zenith Heath MS-DOS ver 2, Z-100 series
half-sized manual in binder, Vol 1, 2.
MS-DOS quick reference booklet
2 original disks OS-61-8 in envelope, registration card; all have same serial number
Zenith Heath MS-DOS ver 2, Programmers Utility Pack, Z-100 & Z-100PC
half-sized manual in binder, Vol 1, 2.
with original disk CB-5063-16
no quick reference booklet
MS-DOS Version 3 Programmer's Utility Pack, 2 volumes, half-sized, 595-3764
MS-DOS Version 3 Conversational MS-DOS, half sized, 595-3485-03
MS-DOS version 3 for Z-100 series, half sized in box,
manual 595-3494-01, Quick Reference Guide, 2 disks OS-63-30
MS-DOS version 3, half sized in box,
manual 595-3477-01, Quick Reference Guide,
envelope for disks OS-63-31 (no disks)
Microsoft MS-DOS V3.0, half height (first set, in original Zenith shipping box)
Vol I Basic concepts, manual 595-3705-01
Vol II Primary Command manual 595-3706-02 (may be lost)
Vol III Program Devel. Winchester manual 595-3707-01, 2 disks OS-63-31
in two Zenith boxes
Microsoft MS-DOS V3.0, half height (second set)
Vol I Basic concepts, manual 595-3705-01
Vol II Primary Command manual 595-3706-02 (may be lost)
Vol III Program Devel. Winchester manual 595-3707-01, 2 disks OS-63-31
in two Zenith boxes
Microsoft MS-DOS V3.0, half height (partial in one Zenith box)
Vol III Program Devel. Winchester manual 595-3707-01, 2 disks OS-63-31
Microsoft GW Basic Ver. 2.0
manual 595-3161-07, EGA support manual 595-3695-02, quick reference
shelf:
-------
Z-100 and Z-100PC, Pascal Compiler, V 3.0 (3.2?), 595-3237, one half-sized binder,
2 disks "Z-DOS" MS-463-5
Z-100 and Z-100PC, Microsoft Fortran Compiler V3.0 (3.2?). 595-3236, half-sized.
2 disks MS-5063-2
Z-100 and Z-100PC, Cobol compiler, for MS-DOS, half-sized, 595-3233-02
2 disks MS 5063-3
above drawer:
------------
MS-DOS 3.21 for Z-150, Z-170, half-sized;
manual 595-3980, quick reference;
2 disks OS-64-61 in envelope w/matching serial number
MS-DOS 3.21 for Z-150, Z-170, half-sized with 2 disks
(2nd set as above except no quick reference)
Z-100 PC (Z-150) Operating Manual, half-sized in gox 595-3157-01
GW-BASIC 3.2 Interpreter, with User Guide,
Quick Reference, User's reference, diskette
GW-BASIC 3.2 Interpreter with User Guide,
Quick Reference, User's reference, diskette (2nd set)
shelf
-----
Z-100 and Z-100PC, Pascal Compiler, V 3.0 (3.2?), 595-3237, one half-sized binder,
2 disks "Z-DOS" MS-463-5
Z-100 and Z-100PC, Microsoft Fortran Compiler V3.0 (3.2?). 595-3236, half-sized.
2 disks MS-5063-2
dBase II Z-100 and Z-100 PC. 595-3296-01, 300pgs, full sized binder.
2 disks, AT-5065-1.
Z-100 and Z-100PC, Cobol compiler, for MS-DOS, half-sized, 595-3233-02
2 disks MS 5063-3
Dbase III, V1.1, half sized, 595-3715-01
3 disks AT-5063-3
ZA-100-4, Boot ROM listings, V2.5, two volumes, full sized.
Zenith Z-248 PC series owner's manual, w/binder and box & disks,
manual 545-3673
Zenith Z-200 PC diagnostics manual, w/binder and box & disks,
manual 595-3680-01, 2 disks CB-3163-40 (2 sets?)
Zenith Lotus 123 release 1A; manual and binder
four diskettes, LS-463-1
Heath/Zenith, ZBASIC (for ZDOS), 1 binders and manual
MS-463-1 diskette
MS-DOS Version 2 Programmer's Utility Pack, half-sized, for Z-100 and Z-150
manual has docs for MASM, CREF, BSE (editor)
595-3186-02, with disk CB-5063-16
disks:
------
Disks only, 5.25 inch:
Ace of Aces, IBM & Tandy, (c)1986-87, 1 disk
Sim Ant (c) 1991, 014-08-604, 4 disks
Acorn Math Arcade II: 1 disk
Microsoft Flight Simulator S-252, 1 disk
Ancient Empires, V1.01, 1 disks
Mavis Beacon teaches Typing V 2.0, 2 disks
Logitech Mouseware V6.3, 1 disks
Menu Maker by ESP, V3.1, 1 disk
Z-100 PC BIOS Source, 1 disk
Z-100 BIOS source disks, 2 disks
Z-BASIC Compiler, one disk
Z-217 Utilities disk, preliminary (two available)
These are mostly for the Zenith PC-compatibles. They are available for sale, and may have more value than the Zenith brand manuals & disks above, which as of 2011 are of almost ZERO interest to others.
Microsoft GW Basic Ver. 2.0 for Z-100 and Z100 PC, half sized in box,
manual 595-3327, disk MS-5163-13 in envelope w/matching serial number
Microsoft Windows manuals: appear to be of a set:
Quick Ref Guide, probably V2.0 or 386, manual 597-4847-02
Windows 2.0 User's guide, 595-4168-01
Windows Desktop Appl Write/Paint USer Guide, V2.0 or 386, manual 595-4040-03
Microsoft Windows manuals: appear to be of a set
Windows 2.0 User's guide, 595-3661 (2 copies)
Windows 2.0 Desktop Applic. Users guide, 595-3662 (2 copies)
Windows User's Guide and Desktop Applications User's Guide (one manual)
595-3586
Microsoft Windows, 5 disks MS-5063-30, version ?? (2 sets)
Microsoft Fortran Compiler (for ZDOS), User Guide 595-3075 and Ref Manual, 595-3096
3 disks, MS-463-2
Microsoft Fortran Compiler (for ZDOS), duplicate of above w/disks
Dbase III, V1.1, half sized, 595-3715-01
3 disks AT-5063-3
dBase II Z-100 and Z-100 PC. 595-3296-01, 300pgs, full sized binder.
2 disks, AT-5065-1.
Autocad 2.0 by AutoDesk, User Guide 106-007 Dec 1984 and Zenith supplement
Z-100 version, large binder
4 disks V2.02 and registration card
I'm prepared to sell ALL of my Sextant and Remark Heath/Zenith related magazines. My duplicates are listed below; I have most of a set of Sextant and Remarks plus duplicates. Ask me for specific issues inlcuding ones not listed.
REMark (Heath/Zenith magazine) issues with duplicates:
Issues 1-4, 1978
Issues 5-8, 1979; plus issues 6 (X2), 7, 8
Issues 9-13, 1980; plus issues 9-12
Issues 14-23, 1981; plus issue 20
Issue 24, 26, 28, 29, 30, 33, 34, 35: 1982; plus issue 34
vol 4 1983 issues 37, 43, 45, 46, 47
vol 5 1984 3, 5 X2, 6, 8 X2, 9
vol 6 1985 1 2 4-11
Vol 6 1985 6, 11
Vol 7 1986 1-12
Vol 7 1986 1-11
Vol 8 1987 1-5, 8, 9, 11, 12
Vol 8 1987 1, 2, 8
Vol 9 1988 1-6, 8-10
Vol 9 1988 2, 9, 10
Vol10 1989 1, 4-7
Vol10 1989 1, 7
REMark ended in June 1992.
Sextant (Heath/Zenith magazine) issues in archives:
19 Nov Dec 85
21 Mar-Apr 86
22 may-jun 86
23 Jul-aug 86
24 Sept Oct 86
25 Nov Dec 86
27 March-April 87
28 May-June 87
29 July Aug 87
30 sep-oct 87
31 Nov-dec 87
32 Jan-feb 88
33 Spring 88
35 Summer 88
36 Summer 88
37 Fall 88
38 Fall 88
Kit Builders Journal (Heath):
Volume 1, 1987, numbers 2-6
Volume 2, 1988, numbers 1-6
Volume 3, 1989, numbers 1-2
HUG catalogs
885-1007 NOv 1979
no date lists three volumes
I'm very fond of these systems, I used these some years ago and worked with a developer and manufacturer of H89 cards. I have a few of these systems, but haven't had time in the past to do much with them. Look for more H88 and H89 information on my general Heath and Zenith computer Web page.
box of Heath/Zenith H89 manuals ------------------------------- These are in black binders by Zenith. Mold on binders but pages OK. Wordstar 2.2X, revised 1/81 595-2681-01 no disks CP/M 80 Basic Compiler binder with manuals, no disks: Basic-80 595-2538-04 Basic compiler 595-2852-01 Macro-80, Link-80, Lib-80, CREF-80 Macro-80 595-2666-03, with Link-80, Lib-80, CREF-80, no disks CP/M manual 595-2776 unopened. with CP/M 2.2 DRI manual copies Supercalc Zenith manual 597-2663 and Sorcim User's Guide 10. July 1981 CP/M Manual 595-2776 with CP/M 2.2 DRI manuals
Floppy Disk Controller Card H 207 --1982 and 1983 editions Illustration booklet, install Z-207 drive
Thanks to the generousity of a Boston area H-8 owner, I acquired an H-8 in 2005. Follow this link for details. Look for more H8 information on my general Heath and Zenith computer Web page.
Most of these Heathkit manuals are in good condition, ask for specifics. We'll price
these at $12 each plus shipping; I may negotiate lower for smaller manuals. I'll consider making copies of these manuals but the copies will still be several dollars each depending on page count. Note: I may have additional manuals with some instruments, check my
odds and ends page for details. Also look for more information on my general Heath and Zenith computer Web page.
Herb Johnson
Copyright © 2023 Herb JohnsonHeathkit non-computing manuals
Solid State 5" Oscilloscope IO-102
Vacuum Tube Voltmeter IM-18 (copy)
Smart Outlet Box GD 1495
Smart Outlet Box GD 1295
Monochrome Video Monitor HVM-1220A
Satellite Earth Station M SR-8300-6
Site Survey Manual (Satellite TV antennae)
Color TV set Model GR-295 assembly (damaged)
Deluxe Solid State Color Television 2000 series
book 1: intro and circuit board assembly
book 2: chasis assembly
book 3: adustments and operation
book 4: in case of difficulty
book 5: alignment and data
TV Subchassis and Picture Tube GR 2000
GR-2000 subchasis and Picture tube
Monochrome Video Monitor HVM-122A
Deluxe Depth Sounder M1-1031
Audio Amplifier Model A-9C (vacuum tube)
Most Accurate Clock BC-1000
Rs-232C output accessory, GCA-1000-1
Heathkit Troubleshooter Volt Ohmmeter
New Jersey, USA
follow this link to email @ me
